Same model may have multiple batches, images only for reference.

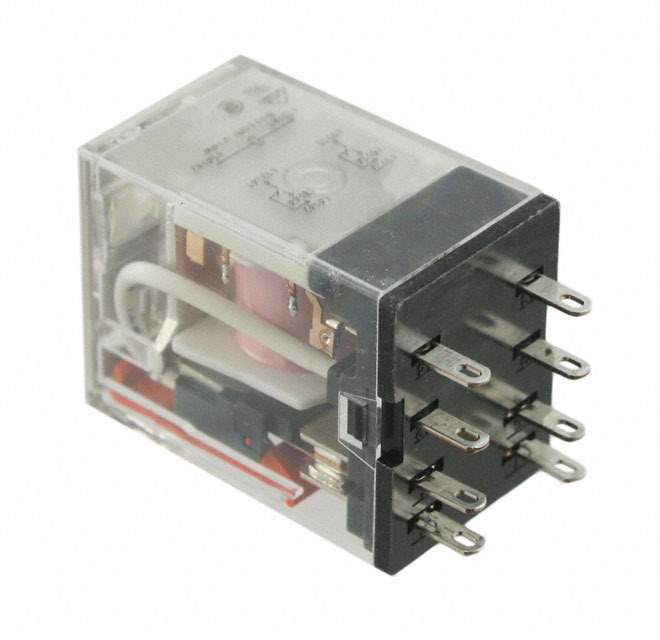

MY2 DC24 (S) Real Image
Same model may have multiple batches, images only for reference.

MY2 DC24 (S)

Part No MY2 DC24 (S)
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series MY
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 37.7 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -55°C ~ 70°C
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 636 Ohms
Base Product Number MY2 DC24
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names MY2-DC24 (S),MY2DC24(S),MY2DC24S,Z182,MY2-DC24(S)
Standard Package 10
Win Source Part Number 1081347-MY2 DC24 (S)
Ultra Librarian 3D Model Ultra Librarian MY2 DC24 (S) CAD Model

Description

The Omron MY2 DC24 (S) is a DPDT (2 Form C) plug in power relay with a contact material of silver (Ag).

  • Switching Voltage: 250VAC, 125VDC - Max
  • Contact Rating (Current): 5 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 636 Ohms
  • Must Operate Voltage: 19.2 VDC
  • Must Release Voltage: 2.4 VDC
  • Mounting: Socketable
  • Temperature Range: -55°C ~ 70°C
