Same model may have multiple batches, images only for reference.

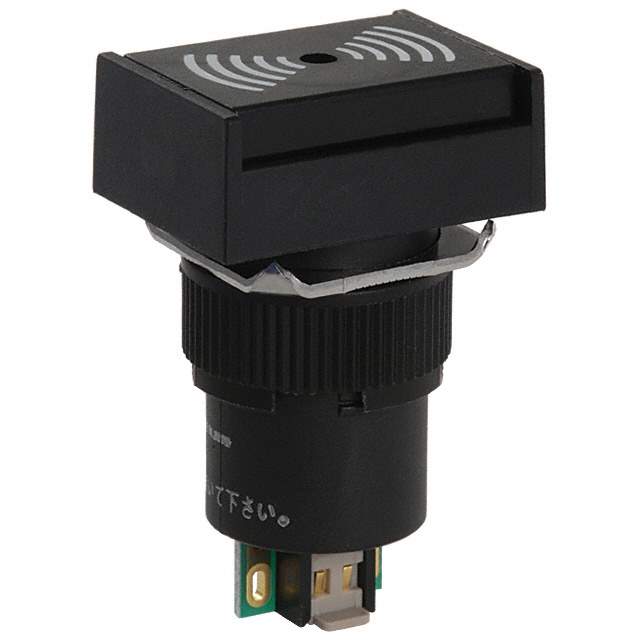

M2BJ-BH24E-D Real Image
Same model may have multiple batches, images only for reference.

M2BJ-BH24E-D

Part No M2BJ-BH24E-D
Manufacturer Omron
Catalog Alarms, Buzzers, and Sirens
Description BUZZER PIEZO 26X20MM PNL MNT / Buzzers Indicator, Internally Driven Piezo 50mA 3kHz 70dB @ 12V, 100cm Panel Mount Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr Omron Automation and Safety
Series M2BJ
Package Bulk
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Range 12 ~ 13V
Frequency 3kHz
Technology Piezo
Operating Mode Pin Selectable
Duration Variable
Sound Pressure Level (SPL) 70dB @ 12V, 100cm
Current - Supply 50mA
Port Location Top
Temperature Range - Operating -10°C ~ 55°C
Mounting Type Panel Mount
Termination Connector
Size / Dimension 1.024" L x 0.787" W (26.00mm x 20.00mm)
Height - Seated (Max) 1.752" (44.50mm)
Base Product Number M2BJ
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1344479-M2BJ-BH24E-D
Ultra Librarian 3D Model Ultra Librarian M2BJ-BH24E-D CAD Model

Description

The M2BJ-BH24E-D is a piezo audio indicator from Omron Automation and Safety.

  • Frequency: 3kHz
  • Operating Voltage Range: 12-13V
  • Sound Pressure Level (SPL): 70dB @ 12V, 100cm
  • Mounting Type: Panel Mount
  • Port Location: Top
  • Driver Type: Internally Driven
  • Operating Temperature Range: -10°C to 55°C
  • Duration: Variable
  • Driver Circuitry: Pin Selectable
  • Package: Bulk
  • Dimensions: 1.024" L x 0.787" W (26.00mm x 20.00mm)
  • Seated Height: 1.752" (44.50mm)
  • Ideal For: Alarms, Buzzers, and Sirens applications
