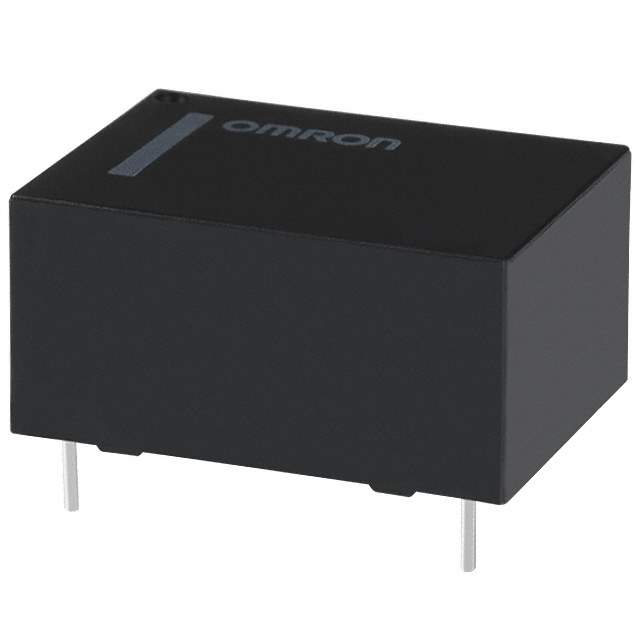

G5CA-1A-E-DC5 Real Image
Same model may have multiple batches, images only for reference.

G5CA-1A-E-DC5

Part No G5CA-1A-E-DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Relay; E-Mech; Power; SPST-NO; Cur-Rtg 15/10AAC/ADC; Ctrl-V 5DC; Vol-Rtg 110/30AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 70 °C
Approvals CSA, UL
Coil Current 40 mA
Coil Power 200 mW
Coil Resistance 125 Ω
Coil Type Non-Latching
Coil Voltage (DC) 5 V
Contact Current Rating 15 A
Contact Material Silver
Current Rating 15 A
Depth 16 mm
Height 11 mm
Lead Free Yes
Length 22 mm
Max Current Rating 15 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 125 V
Min Operating Temperature -25 °C
Mount PCB, Through Hole
Number of Contacts 1
Number of Pins 4
Operate Time 10 ms
Packaging Bulk
Power Consumption 150 mW
Relay Type General Purpose
Release Time 10 ms
RoHS Compliant
Switching Current 15 A
Termination PC Pin
Throw Configuration SPST
Voltage Rating (AC) 250 V
Weight 8 g
Width 16 mm
Win Source Part Number 1060247-G5CA-1A-E-DC5
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G5CA-1A-E-DC5 CAD Model

Description

The Omron G5CA-1A-E-DC5 is a high-quality power relay designed for use in a wide range of applications.

  • Current Rating: 15 A
  • Contact Material: Silver
  • Coil Type: Non-Latching
  • Coil Resistance: 125 Ω
  • Coil Current: 40 mA
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Max Operating Temperature: 70 °C
  • Throw Configuration: SPST
  • Voltage Rating: 250 V (AC)
  • Maximum Current Rating: 15 A
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Mounting: PCB through hole
