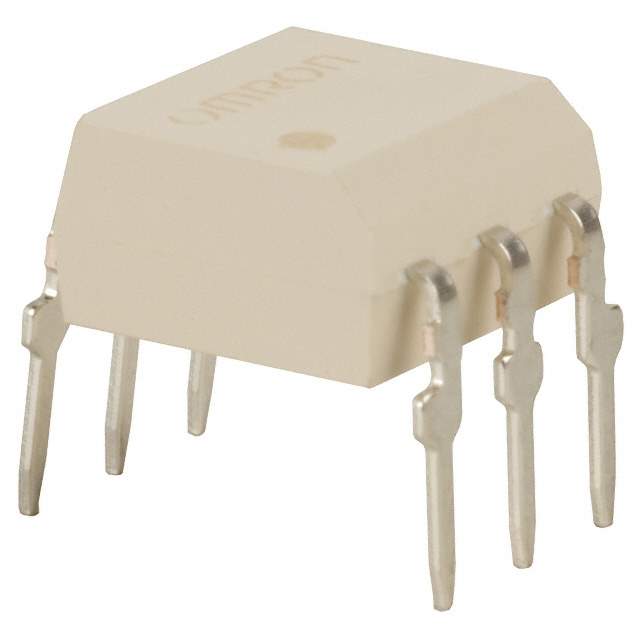

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube/Rail
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 200 mOhm
Load Current 2A
Voltage - Input 1.33VDC
Voltage - Load 0 to 100 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP
Relay Type Relay
Win Source Part Number 1040519-G3VM-101BR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian G3VM-101BR CAD Model

Description

The G3VM-101BR is a single-pole single-throw (SPST) relay manufactured by Omron Electronics Inc-EMC Div.

  • Voltage Switching: up to 100V
  • Load Current: up to 2A
  • On-Resistance: 200 mOhm
  • Operating Voltage Range: 1.33VDC
  • Package: 6-DIP
  • Termination Style: PC pin
  • Ideal for: applications such as home appliances, industrial equipment, and automotive systems
