Same model may have multiple batches, images only for reference.

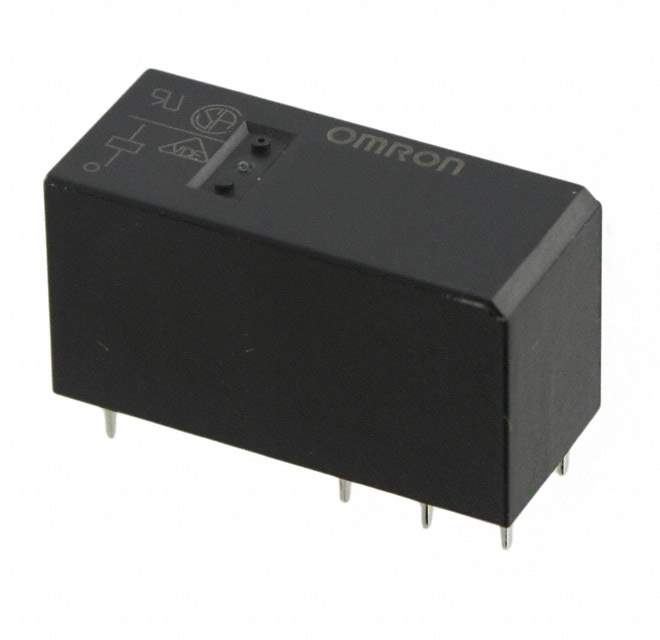

G2RL1CF24DC Real Image
Same model may have multiple batches, images only for reference.

G2RL1CF24DC

Part No G2RL1CF24DC
Manufacturer Omron
Catalog OEM Parts (F - I)
Description General Purpose Relay, G2RL Series, Power, Non Latching, SPDT, 24 VDC, 12 A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 16.7 mA
Coil Resistance 1.44 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 12 A
Contact Material Cadmium, Silver, Tin
Depth 12.7 mm
Height 15.7 mm
Length 29 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount PCB
Number of Pins 5
Operate Time 15 ms
Power Rating 400 mW
REACH SVHC Unknown
Relay Type General Purpose
RoHS Compliant
Termination PC Pin
Throw Configuration SPDT
Voltage Rating (AC) 440 V
Width 12.7 mm
Win Source Part Number 994036-G2RL1CF24DC
Categories OEM Parts(F-I)
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G2RL1CF24DC CAD Model

Description

The Omron electronic component is a general-purpose relay that has a coil voltage of 24V.

  • Coil Voltage: 24V
  • Contact Current Rating: 12A
  • Coil Resistance: 1.44 kΩ
  • Relay Type: Non-Latching
  • Throw Configuration: SPDT
  • Contact Material: Cadmium, Silver, and Tin
  • Power Rating: 400mW
  • Maximum Operating Temperature: 85 °C
  • Win Source Part Number: 994036-G2RL1CF24DC
