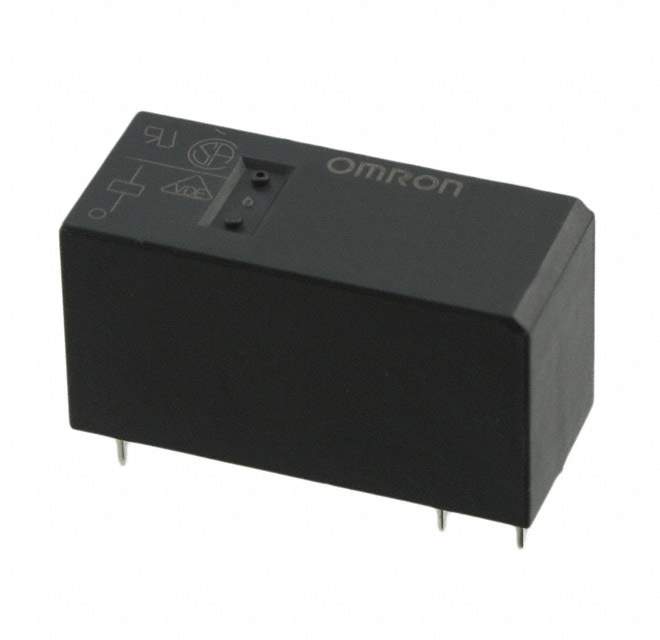

G2RL-1A-E-HA DC12 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1A-E-HA DC12

Part No G2RL-1A-E-HA DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
G2RL-1A-E-HA DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2RL
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Other Names G2RL-1A-E-HADC12,G2RL-1A-E-HADC12-ND,G2RL1AEHADC12,G2RL-1A-E-HA DC12 BY OMB,G2RL1AEHADC12BYOMB,Z8592,G2RL-1A-E-HA DC12-ND
Standard Package 100
Win Source Part Number 980335-G2RL-1A-E-HA DC12
Ultra Librarian 3D Model Ultra Librarian G2RL-1A-E-HA DC12 CAD Model

Description

The Omron Electronics Inc-EMC Div G2RL-1A-E-HA DC12 is a general purpose relay that is part of the G2RL series.

  • Termination Style: PC Pin
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver alloy, cadmium-free
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 16A
  • Switching Voltage: 440VAC, 300VDC - Max
  • Protection: Sealed with flux protection
  • Operating Temperature: -40°C to 85°C
