Same model may have multiple batches, images only for reference.

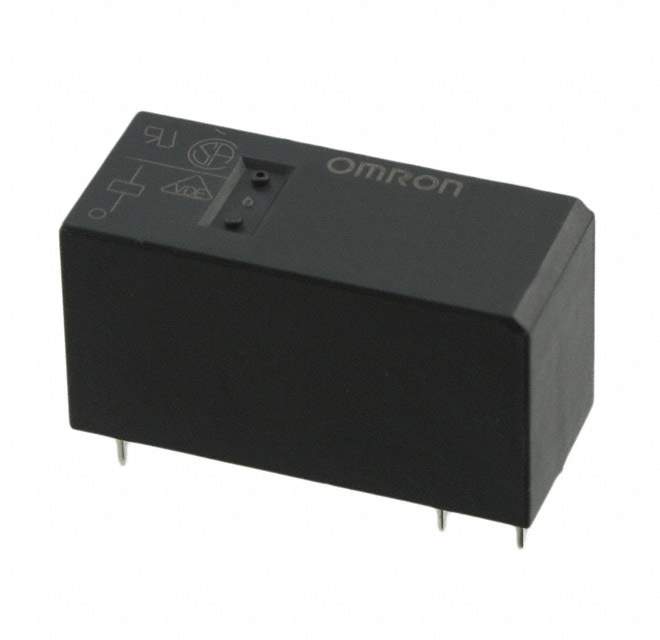

G2RL-1A-E DC12 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1A-E DC12

Part No G2RL-1A-E DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V
Datasheet
G2RL-1A-E DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G2RL
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 440VAC, 300VDC - Max
Turn On Voltage (Maximum) 8.4 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class B, Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Alloy, Cadmium Free
Coil Power 400 mW
Coil Resistance 360 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 774863-G2RL-1A-E DC12
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G2RL-1A-E DC12 CAD Model

Description

The G2RL series from Omron Electronics Inc-EMC Div is a general relay.

  • Contact Form: SPST-NO
  • Contact Rating (Current): 16A
  • Switching Voltage: 440VAC, 300VDC (max)
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3mA
  • Release Time: 5ms
  • Operate Time: 15ms
  • Coil Power: 400mW
  • Turn On Voltage: 8.4VDC (max)
  • Turn Off Voltage: 1.2VDC (min)
  • Insulation Class: B
  • Sealed: Flux Protection
  • Operating Temperature Range: -40°C to 85°C
  • Package: Tube
  • Mounting Type: Through Hole
