Same model may have multiple batches, images only for reference.

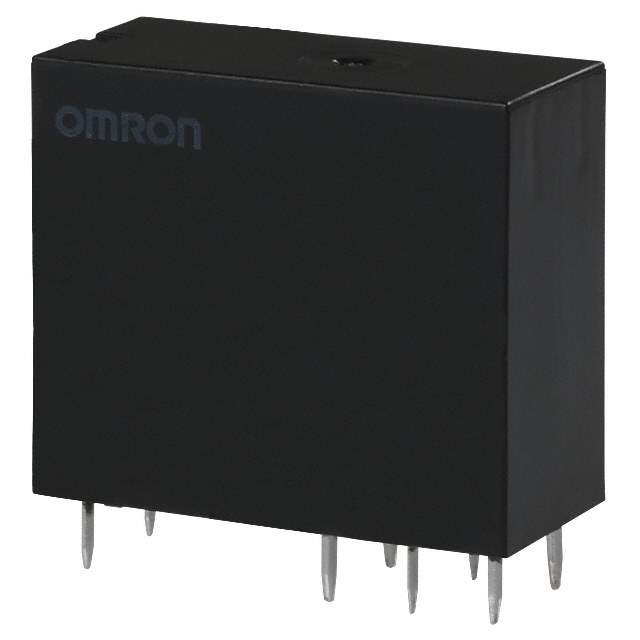

G2R-24-AC120 Real Image
Same model may have multiple batches, images only for reference.

G2R-24-AC120

Part No G2R-24-AC120
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 4A 120V / General Purpose Relay DPDT (2 Form C) 120VAC Coil Through Hole
Datasheet
G2R-24-AC120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2R
Package Tray
Mounting Type Through Hole
Coil Voltage 120VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 4 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 7.5 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 96 VAC
Must Release Voltage 36 VAC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 6.5 kOhms
Base Product Number G2R
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0050
Win Source Part Number 1350463-G2R-24-AC120
Ultra Librarian 3D Model Ultra Librarian G2R-24-AC120 CAD Model

Description

The Omron Electronics Inc-EMC Div G2R Series Power Relay is a high-quality component that is designed for applications that require a contact rating of up to 4 A.

  • Contact Rating: Up to 4 A
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver Alloy
  • Coil Voltage: 120VAC
  • Type: General Purpose
  • Mounting Type: Through Hole
  • Package: Tray
  • Temperature Range: -40°C ~ 70°C
