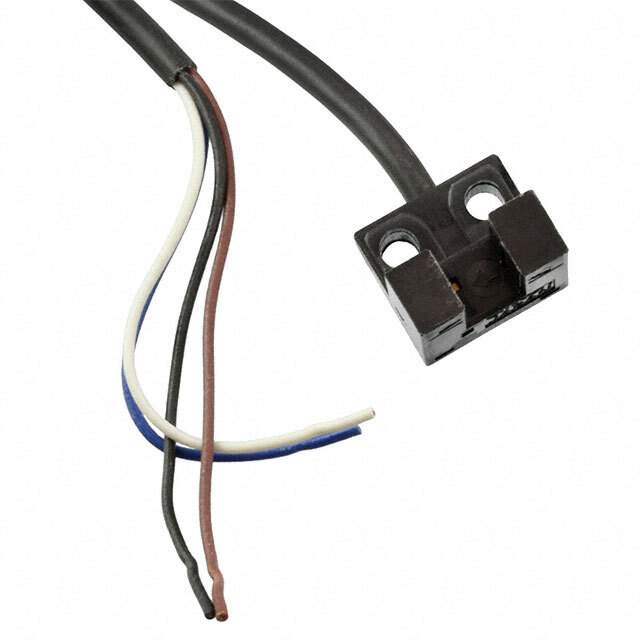

EE-SX951P-W 1M Real Image
Same model may have multiple batches, images only for reference.

EE-SX951P-W 1M

Part No EE-SX951P-W 1M
Manufacturer Omron
Catalog Optical Sensors
Description SENSOR OPT SLOT PNP MODULE 1M / Optical Sensor Through-Beam 0.197" (5mm) PNP - Dark-ON/Light-ON - Selectable Module, Wire Leads, Slot Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Omron Automation and Safety
Series EE-SX95
Package Bulk
Sensing Distance 0.197" (5mm)
Sensing Method Through-Beam
Output Configuration PNP - Dark-ON/Light-ON - Selectable
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 15 mA
Voltage - Collector Emitter Breakdown (Max) 24 V
Temperature Range - Operating -25°C ~ 55°C
Mounting Type Chassis Mount
Package / Case Module, Wire Leads, Slot Type
Type Amplified
Base Product Number EE-SX951
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1351676-EE-SX951P-W 1M
Ultra Librarian 3D Model Ultra Librarian EE-SX951P-W 1M CAD Model

Description

The EE-SX951P-W 1M series photointerrupter is a slot type, transistor output sensor.

  • Sensor Type: Slot Type
  • Output Type: Transistor
  • Sensing Type: Amplified
  • Sensing Method: Through-Beam
  • Output Configuration: PNP with dark-ON/light-ON selectable option
  • Sensing Distance: 0.197” (5mm)
  • Voltage - Collector Emitter Breakdown Max: 24V
  • Packaging: Bulk
  • Mounting Type: Chassis Mount
  • Package / Case: Module, Wire Leads, Slot Type
  • Operating Temperature: -25°C to 55°C
  • Current - Collector (Ic) Max: 15mA
  • Current - DC Forward (If) Max: 50mA
  • Manufacturer: Omron Automation and Safety
  • Base Product Number: EE-SX951
