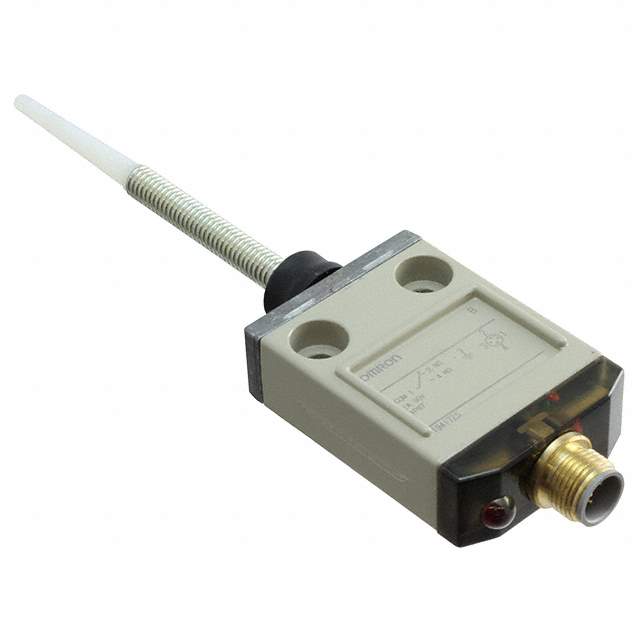

D4CC-4050 Real Image1 D4CC-4050 Real Image2
Same model may have multiple batches, images only for reference.
D4CC-4050 Real Image1 D4CC-4050 Real Image2
D4CC-4050 Real Image1 D4CC-4050 Real Image2
Same model may have multiple batches, images only for reference.

D4CC-4050

Part No D4CC-4050
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 1A 30V / Switch Limit N.O./N.C. SPDT Plastic Rod Connector Receptacle 1A 30VDC 1.47N Rotary Screw Mount
Datasheet
D4CC-4050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Automation and Safety
Series D4CC
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating 1A (DC)
Voltage Rating - DC 30V
Actuator Type Coil Spring
Mounting Chassis Mount
Termination Style Connector
Ingress Protection IP67 - Dust Tight, Waterproof
Features LED Indicator
Operating Force, Torque 150gf
Pretravel 15°
Mechanical Life 10,000,000 Cycles
Electrical Life 200,000 Cycles
Operating Temperature Range -10°C ~ 70°C
Win Source Part Number 771312-D4CC-4050
Popularity Medium
Supply and Demand Status Limited
Family Name D4CC
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian D4CC-4050 CAD Model

Description

The Omron Automation and Safety D4CC series switch is a chassis mount SPDT circuit switch.

  • Operating Force: 150gf
  • Pretravel: 15 degrees
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Current Rating: 1A (DC)
  • Voltage Rating: 30V (DC)
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Actuator Type: Coil Spring
  • Features: LED Indicator
  • Packaging: Bulk
  • Estimated EOL Date: 2025
