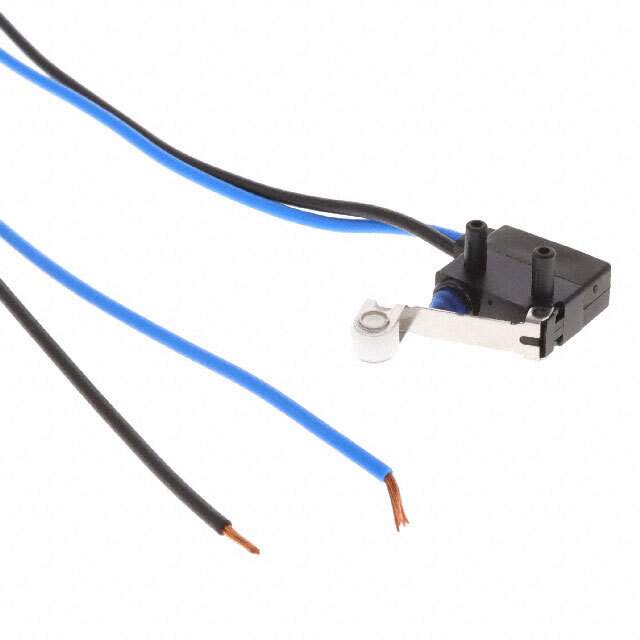

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Features Support Posts
Operating Force 76gf
Release Force 10gf
Differential Travel 0.010" (0.25mm)
Overtravel 0.055" (1.4mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.250" (6.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HW-BR203ML-ND,D2HWBR203MLBYOMR,D2HW-BR203ML BY OMR,Z12232,D2HWBR203ML
Standard Package 100
Win Source Part Number 1024432-D2HW-BR203ML
Ultra Librarian 3D Model Ultra Librarian D2HW-BR203ML CAD Model

Description

The Omron Electronics Inc-EMC Div D2HW-BR203ML is a limit switch with SPST-NO circuit.

  • Manufacturer: Omron Electronics Inc-EMC Div
  • Product Name: D2HW-BR203ML
  • Type: Limit Switch
  • Circuit: SPST-NO
  • Voltage Rating AC: 125 V
  • Voltage Rating DC: 12 V
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Release Force: 10gf
  • Operating Force: 76gf
  • Differential Travel: 0.010" (0.25mm)
  • Overtravel: 0.055" (1.4mm)
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Industry Use: Electronics
  • Package: Bulk
  • Quantity per Package: 100 pcs
