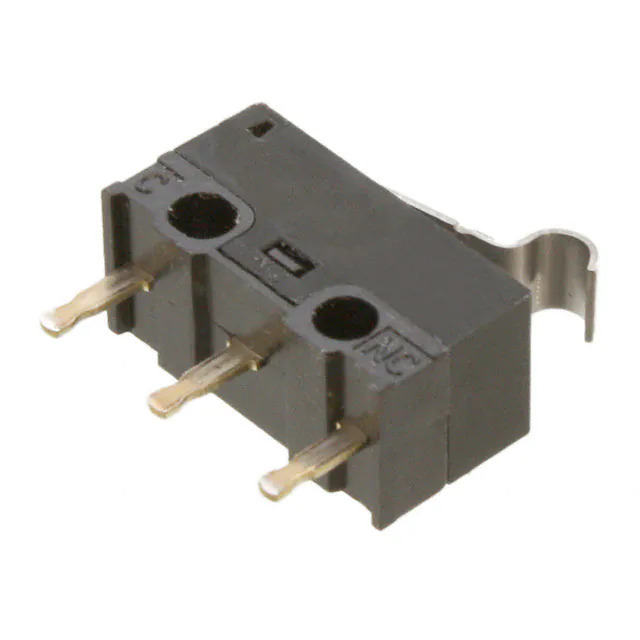

D2F-01FL3 Omron
Same model may have multiple batches, images only for reference.

D2F-01FL3

Part No D2F-01FL3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2F
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Features -
Operating Force 40gf
Release Force 2.039gf
Operating Position 0.335" (8.5mm)
Pretravel -
Differential Travel 0.018" (0.45mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1356624-D2F-01FL3
Ultra Librarian 3D Model Ultra Librarian D2F-01FL3 CAD Model

Description

The D2F-01FL3 is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Series: D2F
  • Mounting Type: Through Hole
  • Current Rating (DC): 100mA
  • Voltage Rating (DC): 30VDC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Simulated Roller
  • Ingress Protection: IP40
  • Mechanical Life: 1,000,000 Cycles
  • Electrical Life: 100,000 Cycles
  • Operating Force: 40gf
  • Release Force: 2.039gf
  • Operating Position: 0.335" (8.5mm)
  • Operating Temperature: -40°C to 85°C
  • Packaging: Tray
  • Status: Active
