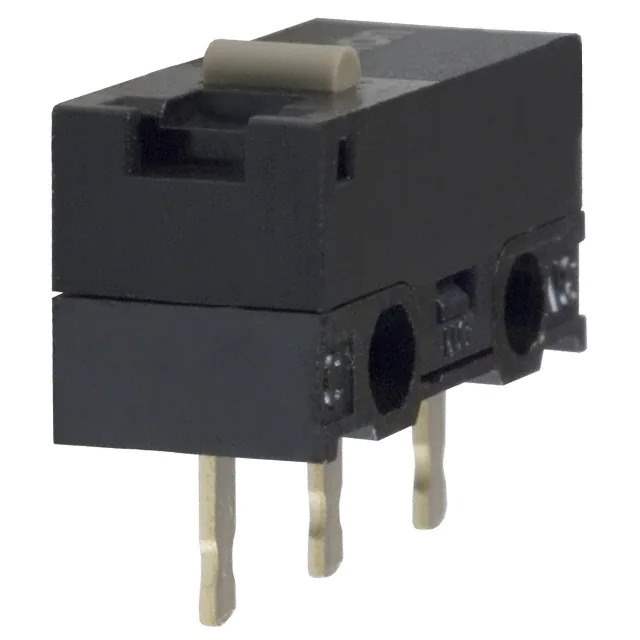

D2F-01F Real Image
Same model may have multiple batches, images only for reference.

D2F-01F

Part No D2F-01F
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 75gf
Release Force 5.099gf
Operating Position 0.217" (5.5mm)
Pretravel 0.020" (0.5mm)
Differential Travel 0.005" (0.13mm)
Overtravel 0.010" (0.25mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 583451-D2F-01F
Ultra Librarian 3D Model Ultra Librarian D2F-01F CAD Model

Description

The 583451-D2F-01F is a limit switch from Omron's D2F series.

  • Termination Style: PC Pin
  • Package: Tray
  • Ingress Protection: IP40
  • Voltage Rating (DC): 30V
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round Pin Plunger
  • Electrical Life: 100,000 cycles
  • Operating Force: 75gf
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 85°C
