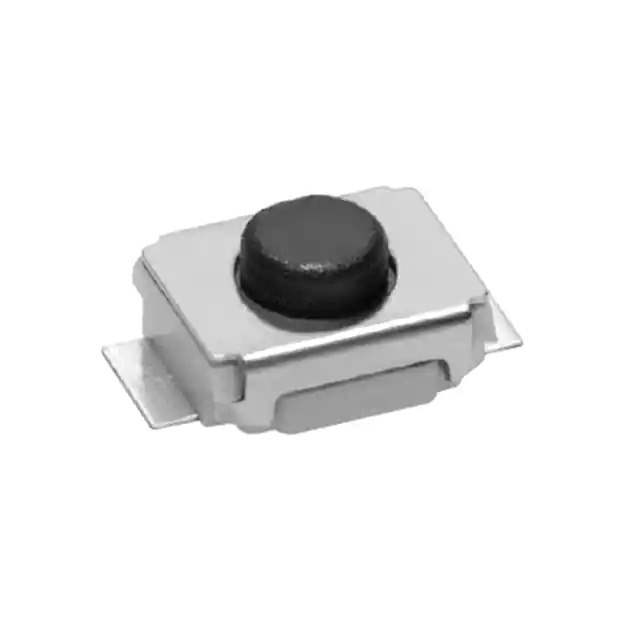

B3U-1100PM Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3U
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 1.60mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.50mm
Illumination Non-Illuminated
Operating Force 153gf
Ingress Protection Dust Proof
Features Grounding Pin
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.15mm
Mechanical Life 200,000 Cycles
Base Product Number B3U
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 863086-B3U-1100PM
Ultra Librarian 3D Model Ultra Librarian B3U-1100PM CAD Model

Description

The B3U-1100PM is a SPST-NO (Single Pole Single Throw Normally Open) tactile switch from Omron.

  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 153gf
  • Switch Travel: 0.15mm
  • Mechanical Life: 200,000 cycles
  • Mounting: Surface mountable
  • Outline: 3.00mm x 2.50mm
  • Dust-proof: Yes
  • Grounding Pin: Yes
  • Series: B3U series from Omron
  • Standard Package: 1,000 pcs
