Products specifications

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.193" (4.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Board Guide, Solder Retention
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123508-292227-6
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 292227-6 CAD Model

Description

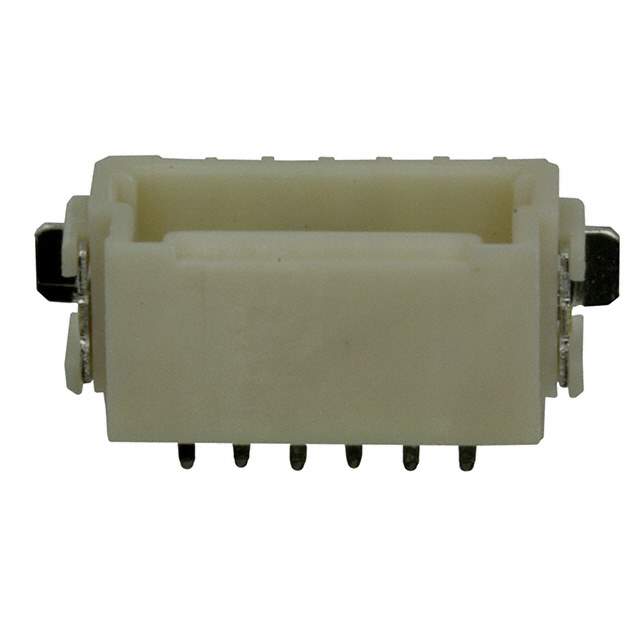

The TE Connectivity AMP Connectors 1123508-292227-6 is an electronic component that has various specifications.

  • It has a packaging of reel and has 6 number of positions.
  • The mounting style is SMT, right angle with board guide and solder retention features.
  • The connector type is header with male pin contact type.
  • All positions are loaded and has 1 number of rows.
  • It has a termination of solder and a fastening type of detent lock.
  • The contact material is brass and has a voltage rating of 50VAC.
  • The material flammability rating is UL94 V-0 and can be used for general purpose applications.
  • The insulation material is made of polyamide (PA6T), nylon 6T, glass filled and has a board to cable/wire style.
  • The pitch-mating is 0.059" (1.50mm) and the contact finish-mating is tin.
  • The insulation color is beige and is shrouded with 4 wall.
  • The contact length-post, overall contact length, and row spacing-mating are not specified.
  • The insulation height is 0.193" (4.90mm) and the contact shape is square.
  • It has a temperature range of -30°C ~ 105°C and a contact length-mating of 0.094" (2.40mm).
  • This component is manufactured by TE Connectivity AMP Connectors and has a Win Source Part Number of 1123508-292227-6.
  • The supply and demand status is currently in balance.
