Same model may have multiple batches, images only for reference.

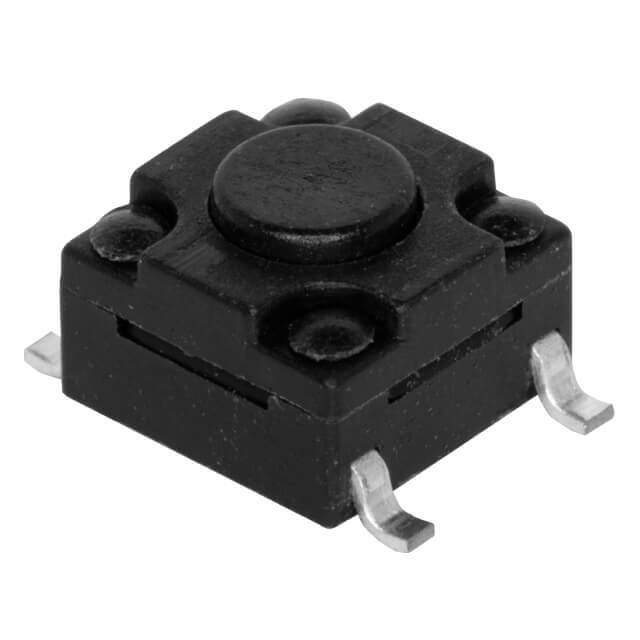

TS05-66-80-BK-260-SMT-67 Real Image
Same model may have multiple batches, images only for reference.

TS05-66-80-BK-260-SMT-67

Part No TS05-66-80-BK-260-SMT-67
Manufacturer CUI Inc.
Catalog Tactile Switches
Description 6 X 6 MM, 8 MM ACTUATOR HEIGHT, / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TS05-66-80-BK-260-SMT-67 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr CUI Devices
Series TS05
Package Bag
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 8.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.10mm x 6.10mm
Illumination Non-Illuminated
Operating Force 260gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -30°C ~ 80°C
Actuator Material Polyamide (PA6T) , Nylon 6T
Switch Travel 0.25mm
Mechanical Life 60,000 Cycles
Base Product Number TS05-66
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1337298-TS05-66-80-BK-260-SMT-67
Ultra Librarian 3D Model Ultra Librarian TS05-66-80-BK-260-SMT-67 CAD Model

Description

The TS05 series tactile switch from CUI Devices has a circuit configuration of SPST-NO and switch function of Off-Mom.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Termination Style: Gull Wing
  • Standard Package: 1,000
  • Ingress Protection: IP67
  • Actuator Material: Polyamide (PA6T), Nylon 6T
  • Mechanical Life: 60,000 Cycles
  • Operating Temperature: -30°C ~ 80°C
  • Outline: 6.10mm x 6.10mm
  • Illumination: Non-Illuminated
  • Switch Travel: 0.25mm
  • Operating Force: 260gf
  • Actuator Type: Top Actuated
  • Actuator Height off PCB, Vertical: 8.00mm
  • Actuator Color: Black
  • Mounting Type: Surface Mount
