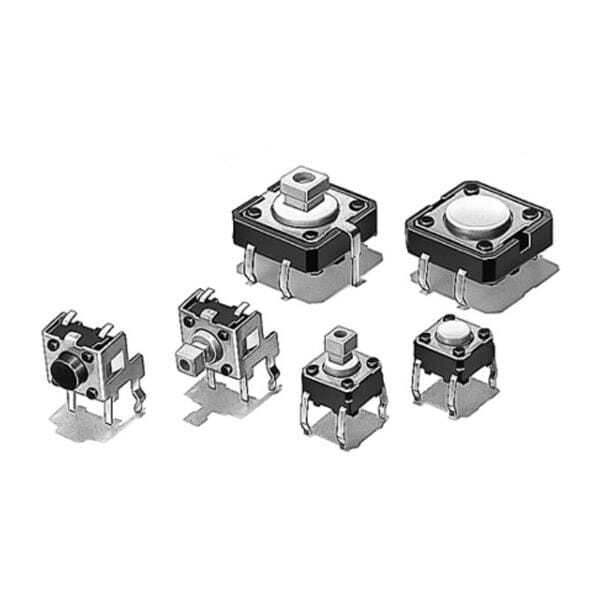

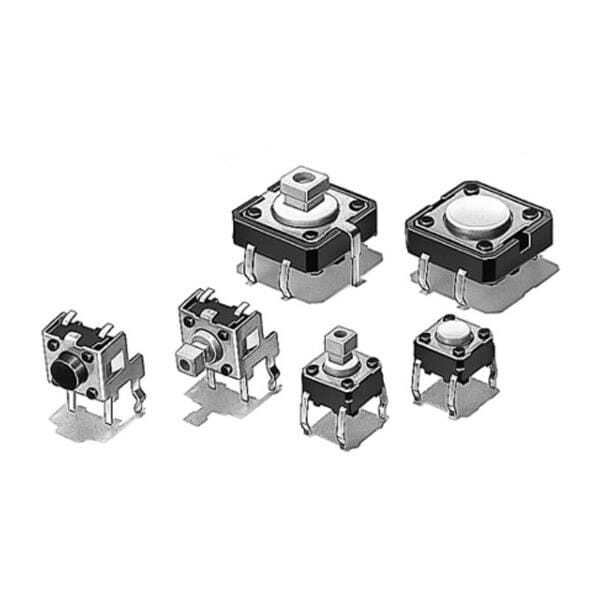

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Omron
Illuminated Non-Illuminated
Mounting Style Through Hole
Mounting Direction Right Angle
Stem Height 6.15 mm
Actuator Rectangular
Switch Function OFF - (ON)
Operating Force 1 N
Current Rating 50 mA
Voltage Rating DC 24 VDC
Ground Terminal No
Contact Form SPST
Termination Style Solder Pin
Color White
Length 6.25 mm
Width 7.3 mm
Height 7.4 mm
Series B3F
Life 1000000 Cycle
Brand Omron Electronics
Maximum Operating Temperature + 70 C
Minimum Operating Temperature - 25 C
Product Type Tactile Switches
Standard Pack Qty 1000
Subcategory Switches
Ultra Librarian 3D Model Ultra Librarian B3F-3150 CAD Model
