B3AL-1001P

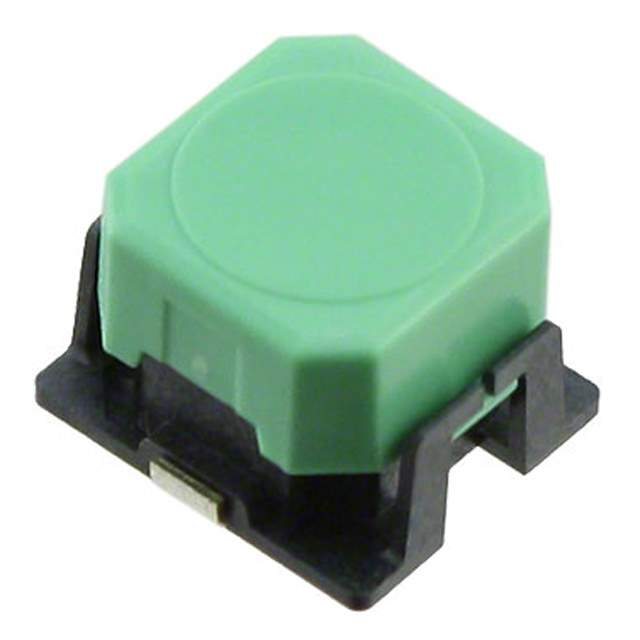

Name: B3AL-1001P
Brand: Omron
SKU: 991514
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B3AL-1001P
Manufacturer	Omron
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 16V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Omron Electronics Inc-EMC Div
Series	B3AL
Package	Tape & Reel
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 16VDC
Actuator Type	Square Button
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	5.00mm
Actuator Orientation	Top Actuated
Termination Style	SMD (SMT) Tab
Outline	6.90mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	250gf
Temperature Range - Operating	-40°C ~ 90°C
Switch Travel	1.30mm
Mechanical Life	1,000,000 Cycles
Base Product Number	B3AL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	SW1217DKR,SW1217CT,B3AL1001P,SW1217TR
Standard Package	1,400
Win Source Part Number	991514-B3AL-1001P
Ultra Librarian 3D Model	Ultra Librarian B3AL-1001P CAD Model

Description

The Omron Electronics Inc-EMC Div component with Win Source Part Number 991514-B3AL-1001P is a tactile switch belonging to the B3AL series.

Termination Style: SMD (SMT) Tab
Standard Package: 1,400
Switch Function: Off-Mom
Circuit: SPST-NO
Actuator Type: Square Button
Switch Travel: 1.30mm
Operating Force: 250gf
Mechanical Life: 1,000,000 Cycles
Operating Temperature Range: -40°C to 90°C
