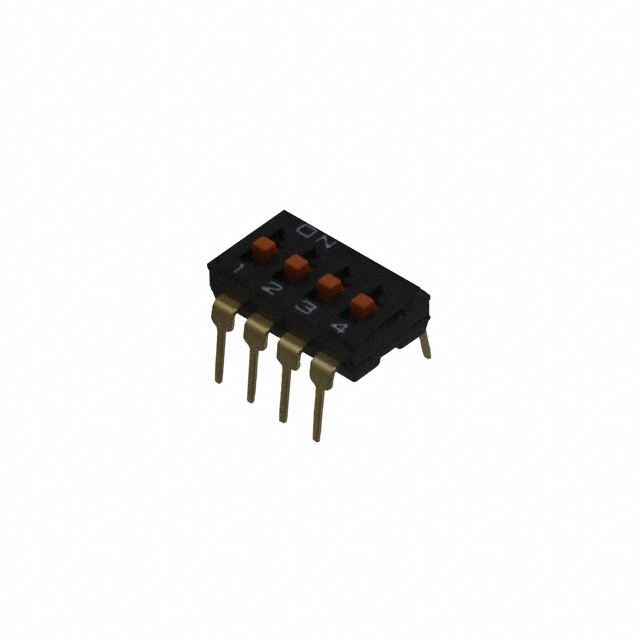

A6T-4104 Omron
Same model may have multiple batches, images only for reference.

A6T-4104

Part No A6T-4104
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
A6T-4104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Series A6T
Packaging Tube
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Height Above Board 0.165" (4.20mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Length 0.437" (11.10mm)
Operating Temperature Range -20°C ~ 70°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 766823-A6T-4104
Popularity Medium
Supply and Demand Status Limited
Family Name A6T
Introduction Date May 20, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian A6T-4104 CAD Model

Description

{"FormattedDescription":"

The A6T-4104 is a slide switch from Omron Electronics Inc-EMC Div.

  • Circuit: SPST
  • Actuator Level: Raised
  • Mounting Style: Through-Hole
  • Package: Tube, 1 unit (standard)
  • Positions: 4
  • Pitch: 0.100\" (2.54mm), Full
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.165\" (4.20mm)
  • Length: 0.437\" (11.10mm)
  • Operating Temperature Range: -20°C to 70°C
  • Part Number: 766823
  • Alternative Parts: 3-382396-5, DTS-4H, ARF043.3K
  • Estimated EOL Date: 2026
"}
