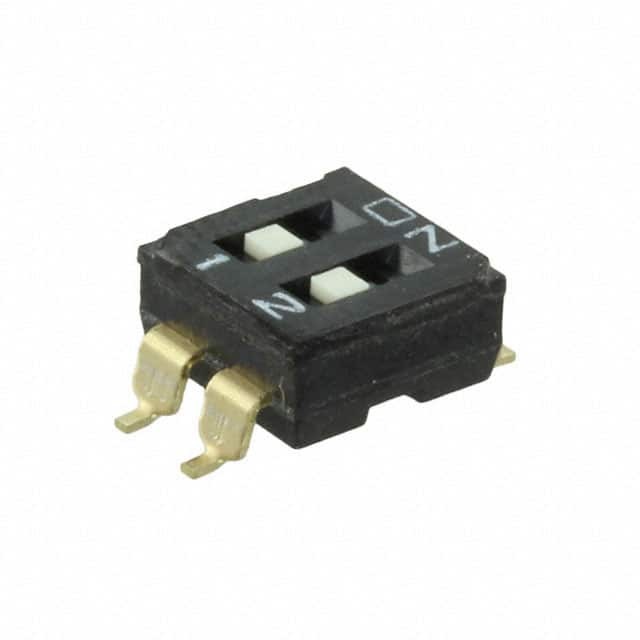

A6S-2102
Same model may have multiple batches, images only for reference.

A6S-2102

Part No A6S-2102
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron
Series A6S
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Height Above Board 0.146" (3.70mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -20°C ~ 70°C
Length 0.237" (6.02mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Standard Package 76 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 909064-A6S-2102
Ultra Librarian 3D Model Ultra Librarian A6S-2102 CAD Model

Description

The A6S series DIP switch is a versatile component designed for electronic circuit customization and configuration manufactured by Omron.

  • Positions: 2
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull wing
  • Actuator Type: Slide (standard)
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Mounting: Surface mount
  • Temperature Range: -20°C to 70°C
  • Status: Obsolete
  • REACH: Unaffected
