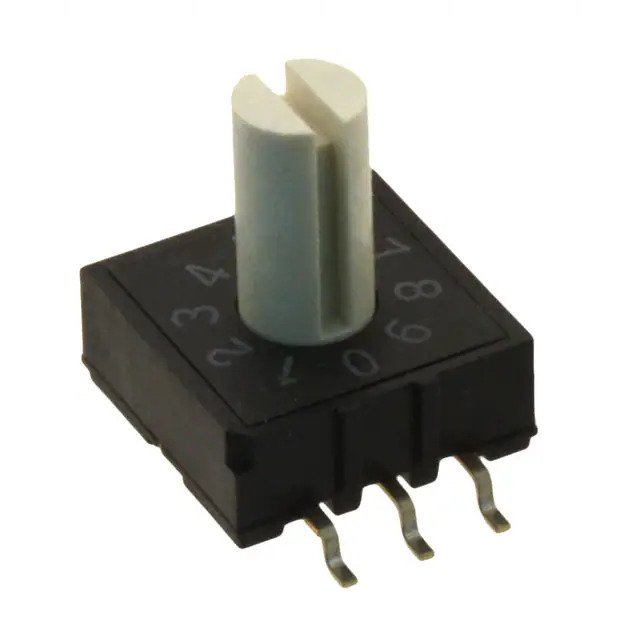

A6RS-102RS-P Omron
Same model may have multiple batches, images only for reference.

A6RS-102RS-P

Part No A6RS-102RS-P
Manufacturer Omron
Catalog DIP Switches
Description SWITCH ROTARY DIP BCD 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6RS
Package Tape & Reel
Product Status Active
Circuit BCD
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material -
Contact Finish -
Height Above Board 0.472" (12.00mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -25°C ~ 80°C
Body Material -
Length 0.386" (9.80mm)
Mechanical Life -
Electrical Life 5,000 Steps
Base Product Number A6RS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376135-A6RS-102RS-P
Ultra Librarian 3D Model Ultra Librarian A6RS-102RS-P CAD Model

Description

The A6RS-102RS-P is a DIP switch manufactured by Omron Electronics Inc-EMC Div.

  • Series: A6RS
  • Operating Temperature: -25°C to 80°C
  • Current Rating: 25mA
  • Positions: 10
  • Actuator Type: Rotary with Shaft
  • Voltage Rating: 24VDC
  • Termination Style: Gull Wing
  • Height Above Board: 0.472" (12.00mm)
  • Length: 0.386" (9.80mm)
  • Status: Active
  • Mounting: Surface Mount
