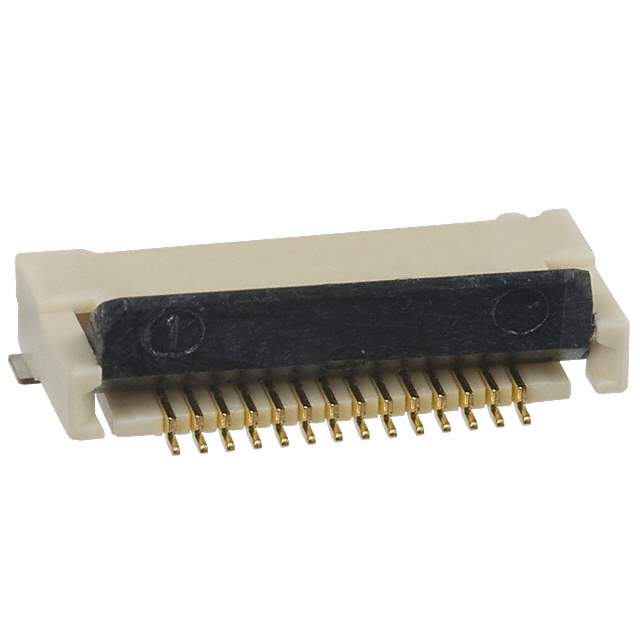

XF2M-1415-1A

Part No XF2M-1415-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description Rotary Backlock Connector (0.5-mm pitch, Dual Contact) | CONN FPC 14POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 14
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Dielectric Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90μin (0.150μm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1282095-XF2M-1415-1A
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XF2M-1415-1A CAD Model

Description

Omron XF2M-1415-1A is an FFC/FPC connector designed for board-to-cable interconnection in compact electronic assemblies where flexible circuitry helps reduce space and simplify routing. Parts in this category are commonly used in consumer devices, industrial controls, displays, office equipment, and embedded systems that rely on flat flexible cables between PCBs, modules, or user-interface sections. Engineers typically choose this type of connector when they need reliable cable termination in space-constrained layouts and repeatable assembly performance. From a sourcing perspective, XF2M-1415-1A may be relevant for both new designs and maintenance requirements, but the current lifecycle status is information not available and should be confirmed directly with Omron or an authorized source before committing to production. RoHS compliance information is also not available from the provided input, so environmental compliance should be verified through the official datasheet, manufacturer declarations, or distributor compliance documentation.
