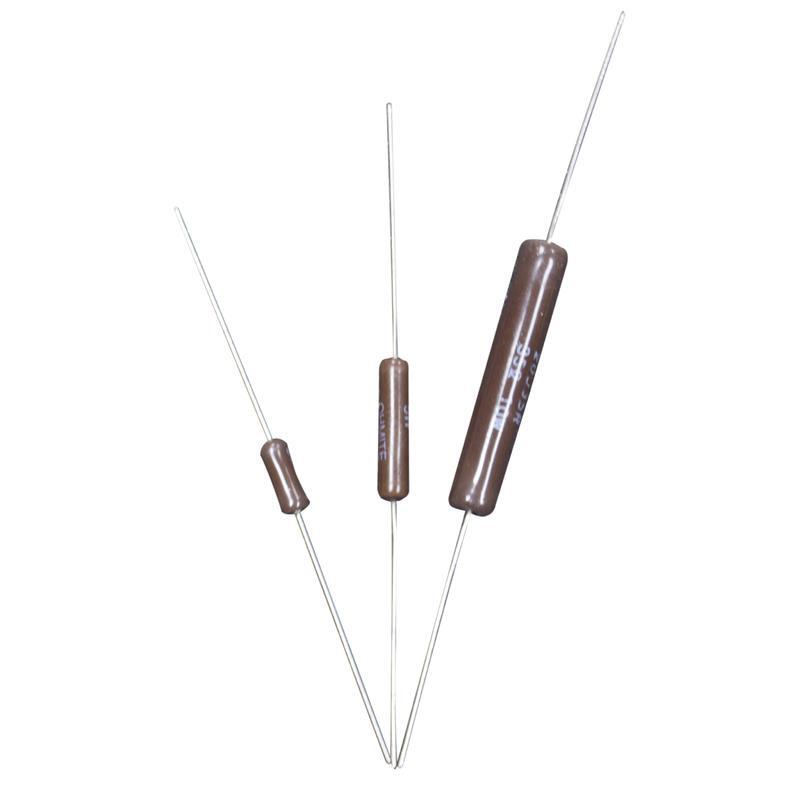

Same model may have multiple batches, images only for reference.
23J560E Ohmite – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

23J560E

Part No 23J560E
Manufacturer Ohmite
Catalog Through Hole Resistors
Description RES 560 OHM 5% 3W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 560 Ohms
Tolerance ±5%
Power (Watts) 3W
Composition Wirewound
Features Flame Retardant Coating, Safety
Temperature Coefficient ±30ppm/°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.220" Dia x 0.516" L (5.60mm x 13.10mm)
Number of Terminations 2
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1590561-23J560E
Ultra Librarian 3D Model Ultra Librarian 23J560E CAD Model
