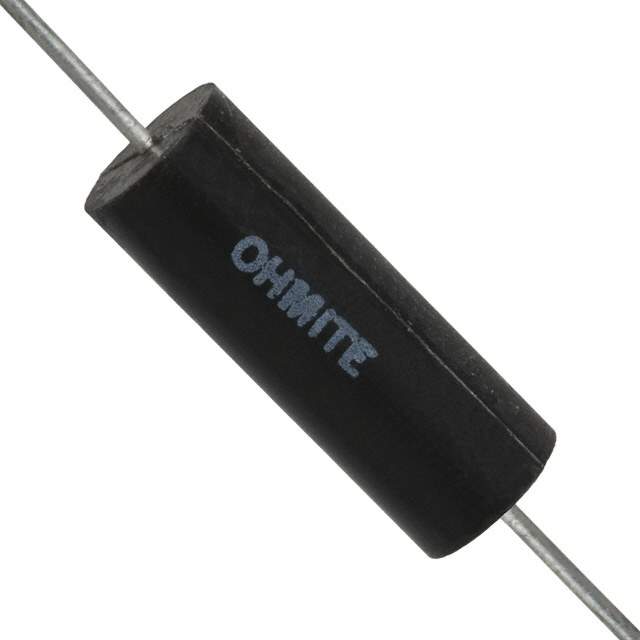

15FR100E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Ohmite
Series 10
Package Bulk
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 5W
Composition Metal Element
Features Current Sense, Non-Inductive
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.331" Dia x 0.937" L (8.40mm x 23.80mm)
Number of Terminations 2
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1349379-15FR100E
Ultra Librarian 3D Model Ultra Librarian 15FR100E CAD Model

Description

The Ohmite 1349379-15FR100E is a Through Hole Resistor component with a power rating of 5W and a resistance of 100 mOhms.

  • Power (Watts): 5W
  • Resistance: 100 mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Features: Current Sense, Non-Inductive
  • Packaging: Bulk
  • Mounting Type: Axial
