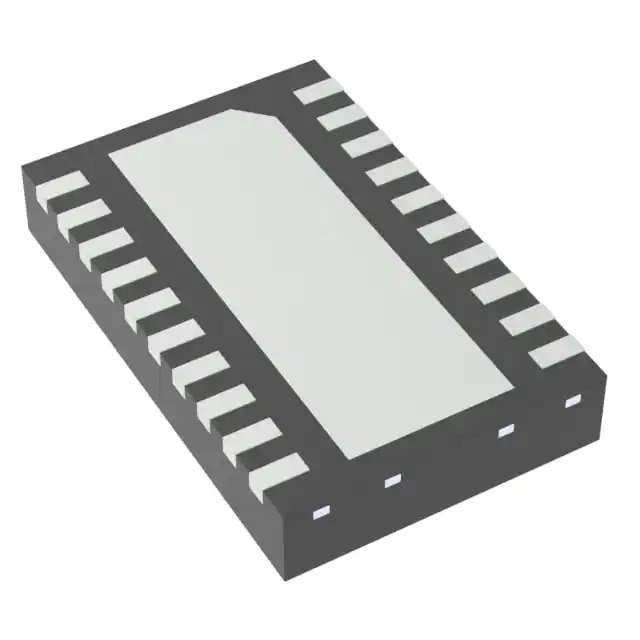

NXP UJA1169TKZ S32K Interface

The NXP UJA1169TKZ is a highly integrated System Basis Chip (SBC) designed for advanced automotive applications. This compact interface chip combines a number of features essential for the control of various subsystems within modern vehicles. It is particularly suitable for use in powertrain and chassis and safety applications, as well as in body control modules.

Key Features:

• High Integration: The UJA1169TKZ integrates a CAN transceiver, voltage regulator, and watchdog functionality into a single package, reducing system complexity and saving board space.
• CAN FD Ready: It supports the CAN Flexible Data rate (CAN FD) for faster data transmission rates, ensuring compatibility with the latest automotive communication standards.
• Low Power Modes: With various low-power modes, including a Sleep mode and a Standby mode, the device helps to minimize the power consumption of the electronic control units (ECUs) when the vehicle is not in operation.
• Advanced Safety: The built-in watchdog timer helps to ensure system reliability, monitoring the system for any fault conditions and initiating a reset if necessary.
• Robust Design: The UJA1169TKZ is designed to withstand the harsh conditions of the automotive environment, featuring protection against over-temperature and transients.

Applications:

• Powertrain Systems
• Chassis and Safety Modules
• Body Control Modules
• Gateway Applications

The UJA1169TKZ is part of NXP's family of automotive interface products, which are known for their reliability and performance in demanding automotive conditions. With its comprehensive feature set and robust design, the UJA1169TKZ is an excellent choice for designers looking to create efficient and reliable automotive systems.
