The TDA8920BJ from NXP Semiconductors is a high-efficiency Class-D audio power amplifier with a highly advanced design, providing a cutting-edge solution for compact and high-power audio applications. This integrated circuit is particularly well-suited for home theater systems, active speakers, and high-performance audio systems.

Key Features

• High Output Power: The TDA8920BJ is capable of delivering up to 2 x 100 W into a 4-ohm load and 2 x 50 W into an 8-ohm load, making it an excellent choice for driving a wide range of speakers with clarity and power.
• High Efficiency: With its Class-D architecture, it achieves efficiencies of over 90%, ensuring minimal heat generation and reducing the need for extensive heat sinking.
• Low Distortion: The device provides low THD+N (Total Harmonic Distortion plus Noise), which ensures high-fidelity audio reproduction.
• Advanced Protection: It includes a comprehensive set of protections such as short-circuit protection, thermal protection, and overvoltage protection, safeguarding the amplifier and connected components from potential damage.
• Simple Integration: The TDA8920BJ is designed for simplicity in system integration, requiring minimal external components, which helps in reducing overall design complexity and BOM costs.

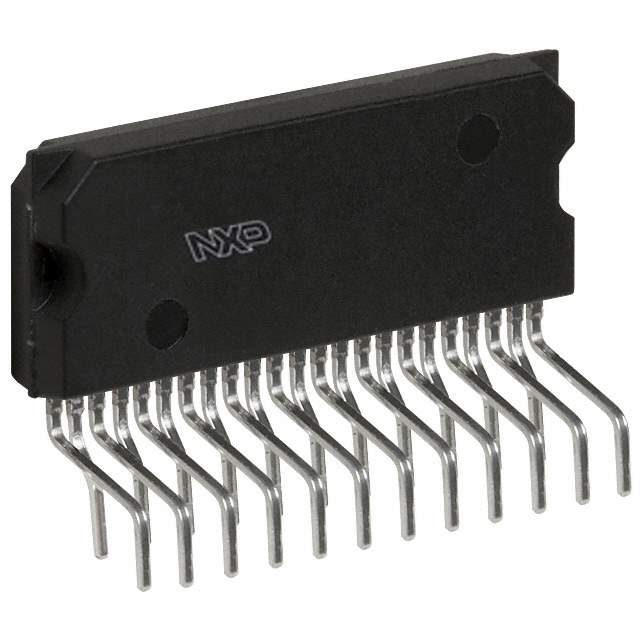

• Surface-Mount Device (SMD): The amplifier comes in a compact 23-lead DIL-bent-SIL power package, suitable for surface-mounted PCB designs and space-constrained applications.

Applications

The TDA8920BJ is versatile and can be used in a variety of audio applications. Its high power output and efficiency make it ideal for:

• Home theater systems
• Active speaker setups
• Professional audio equipment
• Compact audio applications requiring high power density

Technical Specifications

• Supply voltage range: ±15 V to ±30 V
• Switching frequency: 400 kHz
• Gain: 30 dB
• Signal-to-noise ratio: 100 dB

With its robust feature set and impressive performance, the NXP TDA8920BJ stands out as a superior choice for designers looking to create high-quality audio systems with efficiency and reliability at their core.
