The NXP S9S12DG12F1VFUE is a sophisticated and versatile microcontroller designed to cater to a wide range of automotive and industrial applications. This powerful MCU is part of the S12D family, renowned for its high performance and integration features. The S9S12DG12F1VFUE is built upon the HCS12 core, which operates at a frequency of up to 25 MHz, and it is equipped with a wealth of peripherals that enable robust control and communication capabilities.

Key Features

• Core: 16-bit HCS12 CPU, up to 25 MHz bus speed
• Memory: 128 KB Flash memory, 8 KB RAM, and 4 KB EEPROM, providing ample space for complex applications and data storage
• Timers: Enhanced Capture Timer, Pulse Width Modulator (PWM) and Real-Time Interrupt for precise time control and event management
• Communication Interfaces: Multiple Serial Communication Interface (SCI) channels, Serial Peripheral Interface (SPI) modules, and Inter-Integrated Circuit (I²C) bus for versatile peripheral connectivity
• Analog-to-Digital Converter: Integrated 10-bit ADC with multiple channels for accurate analog signal measurement and conversion
• Input/Output: Extensive I/O ports with interrupt capability for user interface and control

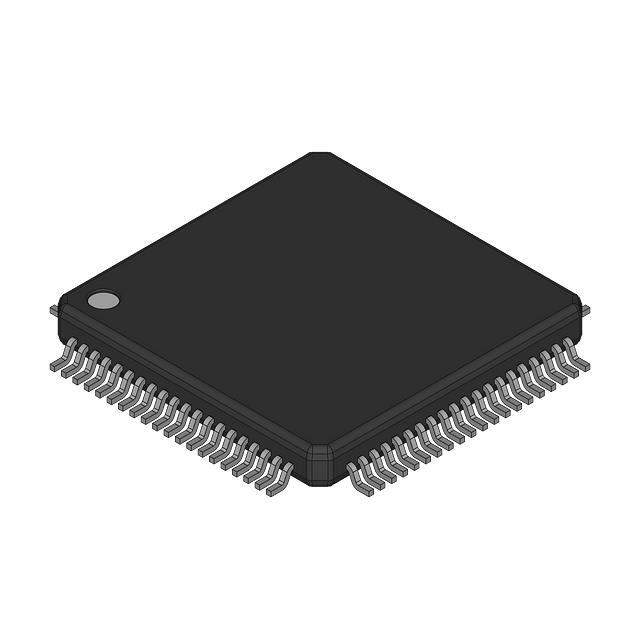

• Package: 80-QFP (Quad Flat Package) for a compact footprint and efficient space utilization on PCBs
• Temperature Range: Operating temperature range from -40°C to +125°C, suitable for harsh environments
• Supply Voltage: 2.35V to 5.25V, accommodating a wide range of power supply conditions

Applications

The S9S12DG12F1VFUE MCU is ideal for automotive applications, including body control modules, dashboards, and engine management systems. Its robust design also makes it suitable for industrial control systems, robotics, and smart sensors. The combination of processing power, memory, and rich set of peripherals enables designers to create complex and reliable systems with reduced component count and development time.

Conclusion

With its advanced architecture, the NXP S9S12DG12F1VFUE microcontroller stands out as a top choice for engineers looking to push the boundaries of automotive and industrial embedded systems. The MCU's comprehensive feature set ensures that it can meet the demands of the most challenging applications while maintaining cost-effectiveness and design simplicity.
