NXP S9S08AW16AE0CFTR Microcontroller

The NXP S9S08AW16AE0CFTR is a high-performance microcontroller designed for a wide array of applications requiring robust operation, high integration, and low power consumption. This device is part of the S08 family, which is renowned for its user-friendly features and powerful capabilities, making it an ideal choice for automotive, industrial, and consumer markets.

At the heart of the S9S08AW16AE0CFTR lies an HCS08 central processing unit (CPU) with a 16-bit architecture that can run at a maximum speed of up to 40 MHz. This impressive processing power is complemented by 16KB of flash memory, allowing for substantial program storage, and 1KB of RAM for efficient data handling. The flash memory is particularly advantageous as it supports in-circuit programming, which simplifies the process of firmware updates and debugging.

The microcontroller boasts a rich set of peripherals, including an 8-channel 10-bit analog-to-digital converter (ADC), which enables precise analog signal measurement. It also features multiple communication interfaces such as a Serial Peripheral Interface (SPI), an Inter-Integrated Circuit (I2C) bus, and a Serial Communication Interface (SCI), providing versatile connectivity options for various external devices.

For enhanced system robustness, the S9S08AW16AE0CFTR is equipped with a watchdog timer to prevent system lock-ups and an integrated low-voltage detection module to safeguard against power supply fluctuations. Its temperature sensor ensures reliable operation over a wide temperature range, making it suitable for harsh environments.

Designed with power efficiency in mind, the microcontroller supports multiple power-saving modes, including stop and wait modes, which significantly reduce power consumption when the device is idle or operating under reduced processing requirements.

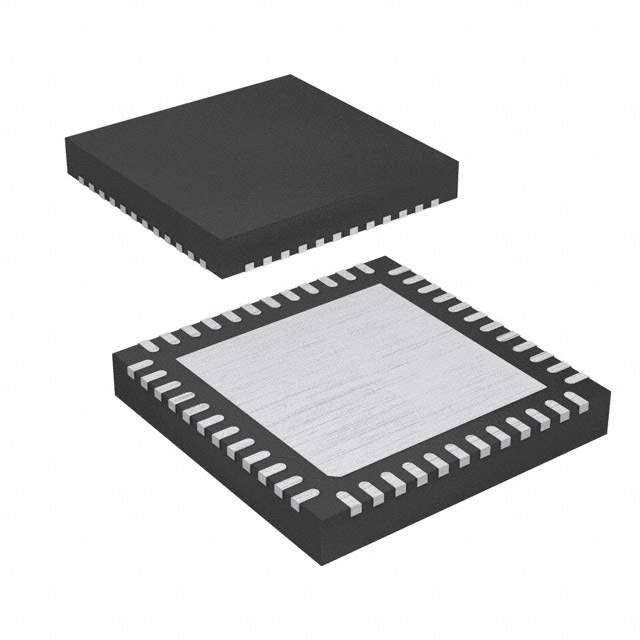

The S9S08AW16AE0CFTR is available in a 48-pin QFN package, offering a compact footprint for space-constrained applications. With its robust feature set, this NXP microcontroller is an excellent choice for engineers looking to develop sophisticated and reliable systems with stringent power and space requirements.
