Product Overview: PCA9635PW/Q900,118

The PCA9635PW/Q900,118 is a highly versatile LED driver integrated circuit (IC) designed and manufactured by NXP Semiconductors, a leader in the field of advanced semiconductor solutions. This particular device is part of the PCA963x family of I²C-bus controlled LED drivers and is specifically tailored for applications requiring sophisticated control of multiple LEDs.

Key Features

• Driver Configuration: The PCA9635PW/Q900,118 is capable of driving up to 16 individual LEDs, providing designers with the flexibility to control complex LED arrays.
• I²C Interface: This LED driver operates via an I²C-bus interface, supporting both 400 kHz Fast-mode and 1000 kHz Hs-mode, which allows for easy integration into existing systems and straightforward communication with microcontrollers.
• Adjustable Brightness: Each LED output can be programmed for its own brightness level through an 8-bit resolution (256 steps) PWM controller, enabling precise control over the intensity of each LED.
• Group Dimming and Blinking: The PCA9635PW/Q900,118 offers group dimming and blinking that can be programmed separately from the individual LED brightness, providing additional lighting effects without the need for complex software control.
• Supply Voltage: The device operates on a supply voltage ranging from 2.3 V to 5.5 V, making it suitable for various applications, including battery-powered devices.
• Output Current: It provides open-drain outputs capable of sinking up to 25 mA, which can be adjusted via external resistors.
• Thermal Protection: Built-in thermal shutdown protection ensures the longevity and reliability of both the IC and the LEDs it controls.

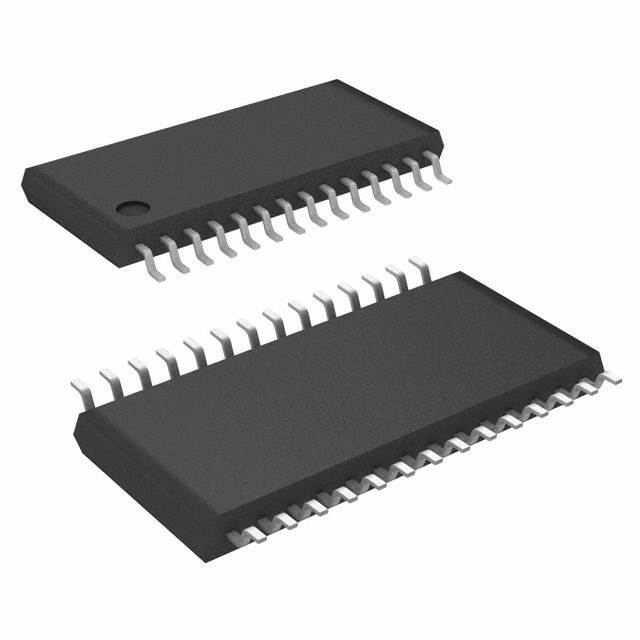

• Packaging: The PCA9635PW/Q900,118 is offered in a TSSOP28 package, which is suitable for space-constrained applications.

Applications

The PCA9635PW/Q900,118 is ideal for a range of LED lighting applications, including:

• RGB or RGBA LED displays
• Backlighting for LCD displays
• Indicator lights and buttons
• Interior and architectural lighting
• Automotive lighting and dashboard displays

With its comprehensive feature set and ease of use, the PCA9635PW/Q900,118 from NXP Semiconductors is a top choice for designers looking to create sophisticated LED lighting solutions.
