Product Overview: NTS0104GU12 Dual Supply Translating Transceiver

The NTS0104GU12 from NXP Semiconductors is a high-performance, dual-supply translating transceiver designed to address the need for voltage level translation in multi-voltage systems. This versatile component is an ideal solution for applications that require communication between different voltage domains, such as interfacing between microcontrollers and peripherals with non-matching voltage levels.

Key Features

• Bi-Directional Interface: With its bi-directional level shifting capability, the NTS0104GU12 can transmit data in both directions, from A to B or B to A, without the need for a direction control signal.
• Dual Supply Voltage: This transceiver operates over a broad range of supply voltages from 1.65V to 3.6V on the A side and 2.3V to 5.5V on the B side, making it highly adaptable to various system requirements.
• High-Speed Data Transfer: The device supports high-speed data transfer rates, ensuring efficient communication between devices operating at different voltage levels.
• Low Standby Current: The NTS0104GU12 is designed with power conservation in mind, featuring a low standby current that helps extend battery life in portable applications.
• ESD Protection: Integrated electrostatic discharge (ESD) protection circuits safeguard the device against damage from static electricity, enhancing system reliability.
• Latch-Up Performance: It exceeds 100 mA per JESD 78, Class II, which provides robust performance for latch-up immunity.

Applications

The NTS0104GU12 is suitable for a variety of applications, including but not limited to:

• Mobile Phones
• Computers and Peripherals
• Consumer Electronics
• Networking Equipment
• Portable and Battery-Powered Devices

Package and Quality

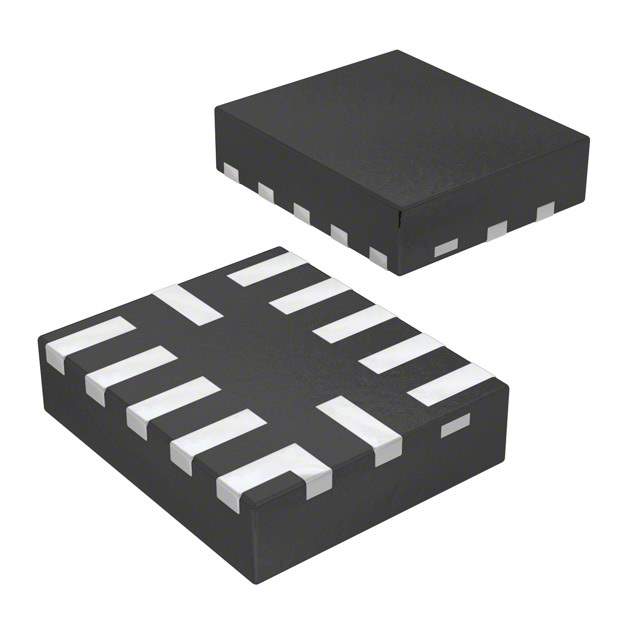

The device comes in a small and convenient DHVQFN14 package, which is ideal for space-constrained applications. It is also specified from -40°C to +85°C, ensuring reliable operation across a wide temperature range. NXP's commitment to quality ensures that the NTS0104GU12 meets the stringent requirements of the modern electronic industry, making it a trustworthy choice for your voltage translation needs.
