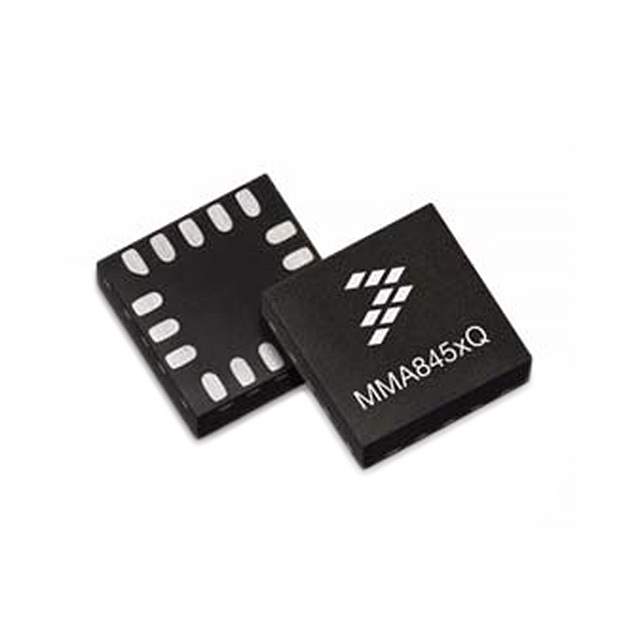

The NXP MMA8453QT is a smart, low-power, three-axis, capacitive micromachined accelerometer featuring 10 bits of resolution. This robust accelerometer provides user-selectable full scales of ±2g/±4g/±8g and it is packed with embedded functions with flexible user-programmable options, configurable to two interrupt pins.

Embedded interrupt functions allow for overall power savings, relieving the host processor from continuously polling data. The MMA8453QT can communicate through a digital I2C interface, which makes it an ideal choice for applications where efficiency and communication speed are essential.

Key Features:

• Resolution: High resolution 10-bit ADC.
• Selectable Range: ±2g/±4g/±8g, dynamically selectable.
• Low Power: Reduced power modes for power-sensitive applications.
• Data Rate: Output data rates (ODR) from 1.56 Hz to 800 Hz.
• Orientation Detection: Orientation detection with settable hysteresis.
• Interrupt Functionality: Freefall/Motion detection, Pulse detection, and Auto-Wake/Sleep for low power consumption.
• Interface: I2C digital output interface (400 kHz Fast Mode).
• Robust: High shock survivability (up to 10,000g).
• Temperature Range: Operating temperature range from -40°C to +85°C.

Applications:

The versatility of the MMA8453QT makes it suitable for a wide array of applications, including but not limited to:

• Mobile devices (e.g., phones, tablets)
• Medical devices
• Gaming and pointing devices
• Industrial and automotive systems
• Personal electronics

With its compact form factor and high degree of functionality, the NXP MMA8453QT is a go-to solution for designers looking to add sophisticated motion sensing capabilities to their projects while maintaining power efficiency and space optimization.
