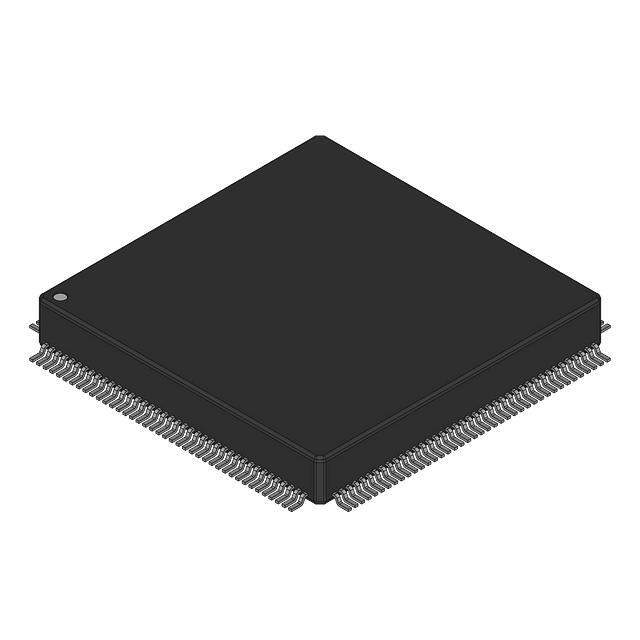

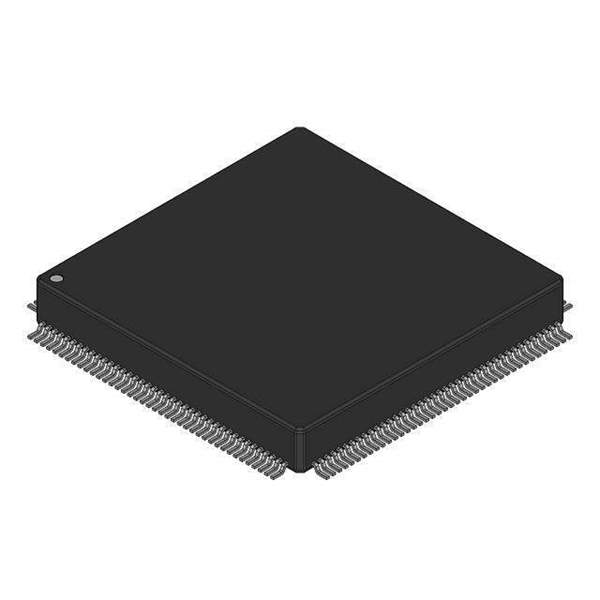

The NXP MCF5206ECFT40 is a highly integrated microprocessor that is part of the MCF520x family of processors. Designed to offer a balance between performance and cost, this microprocessor is ideal for embedded control applications. It features a ColdFire V2 core, which provides a 32-bit architecture, making it suitable for systems that require efficient data processing and high-speed computing capabilities.
Key Features
- CPU Core: The MCF5206ECFT40 is built around the ColdFire V2 core, which operates at a frequency of 40 MHz. This core is known for its low power consumption and high-performance processing.
- Memory Management: It includes a Memory Management Unit (MMU) that supports full virtual memory and memory protection, enhancing the reliability and security of applications.
- Integrated Peripherals: The processor comes with a variety of on-chip peripherals including UARTs, timers, and a DMA controller, reducing the need for external components and simplifying design.
- Connectivity: With its integrated Ethernet controller, the MCF5206ECFT40 provides robust network connectivity, essential for IoT applications and connected devices.
- Debugging Features: On-chip debugging features facilitate easier software development and system troubleshooting.
Applications
The versatility of the MCF5206ECFT40 makes it suitable for a wide range of applications. It is commonly used in:
- Industrial Control Systems
- Home Automation
- Medical Devices
- Point-of-Sale Terminals
- Networking Equipment
Technical Specifications
Attribute
Value
CPU Speed
40 MHz
Core Architecture
ColdFire V2
On-Chip Memory
Integrated SRAM
I/O Options
UARTs, Timers, DMA
Supply Voltage
3.3V
With its robust feature set and flexible capabilities, the NXP MCF5206ECFT40 is a compelling choice for designers and engineers looking to create sophisticated embedded systems with a focus on reliability and efficiency.
