NXP MCF5206CAB25A Microcontroller

The NXP MCF5206CAB25A is a highly integrated microcontroller that is part of the MCF520x family, designed to provide a cost-effective solution for managing embedded control applications. This powerful microcontroller combines the functionality of a 32-bit CPU with high-performance peripherals, making it an ideal choice for a wide range of applications, including industrial control, medical devices, automotive systems, and networking equipment.

Key Features of MCF5206CAB25A

• Core: At the heart of the MCF5206CAB25A is a 32-bit ColdFire V2 core that operates at 25 MHz, delivering the processing power needed for complex and time-sensitive tasks.
• Memory: The microcontroller comes with integrated memory management units (MMUs) that support full operating systems and provide a smooth multitasking environment. It also includes 512 bytes of RAM and 512 bytes of ROM.
• Communication Interfaces: To ensure versatile connectivity, the MCF5206CAB25A features multiple communication interfaces, including UART, Queued Serial Peripheral Interface (QSPI), and Timer Processing Units (TPU).
• Input/Output: The device offers an assortment of I/O options for interfacing with external devices, providing greater flexibility in system design.
• On-Chip Peripherals: A range of on-chip peripherals, such as timers, DMA controllers, and interrupt controllers, enhance the functionality of the microcontroller and reduce the need for additional external components.
• Power Consumption: Designed with power efficiency in mind, the MCF5206CAB25A is suitable for applications where power consumption is a critical factor.

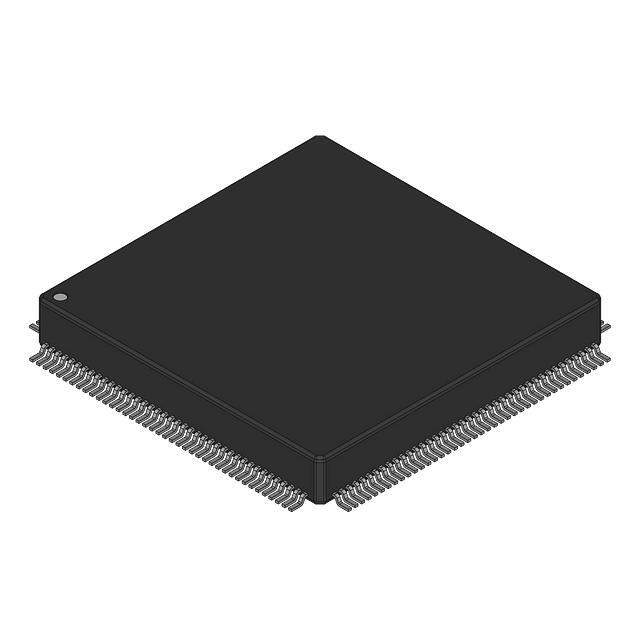

• Packaging: The microcontroller is available in a 160-pin QFP (Quad Flat Package), which is conducive to space-constrained applications.

Applications

The versatility of the MCF5206CAB25A makes it well-suited for a variety of applications. Its robust architecture and comprehensive feature set enable it to support complex tasks in industrial automation, such as motor control and process monitoring. In the automotive sector, it can manage engine control units and other vehicle diagnostics. Its reliability and processing capabilities also make it a good fit for medical devices that require precise control and data acquisition.

Overall, the NXP MCF5206CAB25A microcontroller is a powerful and versatile component that offers a balanced combination of performance, integration, and cost-effectiveness, making it an excellent choice for designers looking to optimize their embedded systems.
