Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Core Processor S08
Data Bus Width 8-Bit
Speed 50MHz
Connectivity I2C, LINbus, SCI, SPI
Peripherals LVD, PWM, WDT
The number of I/O 38
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
Date RAM Size 2K x 8
Supply Voltage 1.8V ~ 3.6V
Data Converters A/D 10x12b
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD

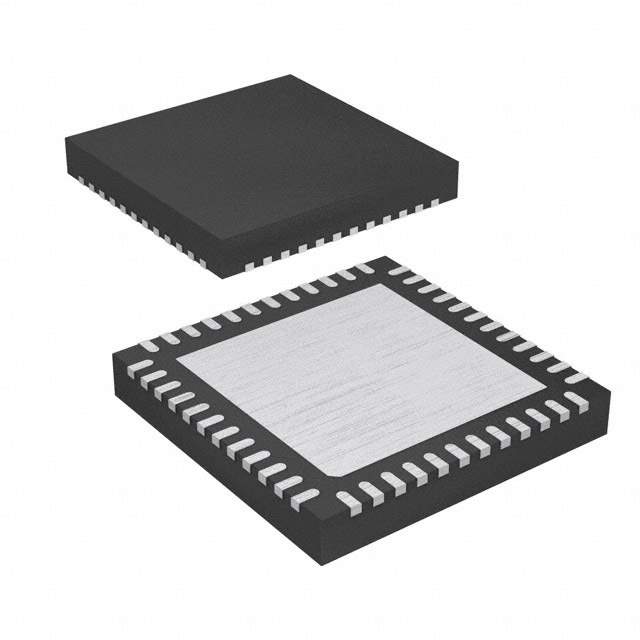

Manufacturer Package 48-VFQFN Exposed Pad
Supplier Device Package 48-QFN-EP (7x7)
Family Part Number MC9S08QE32
Manufacturer Pack Quantity 1,300
MSL Level 3 (168 Hours)
Win Source Part Number 1220498-MC9S08QE32CFT
Manufacturer Homepage www.freescale.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC9S08QE32CFT CAD Model

Description

Product Overview: NXP MC9S08QE32CFT Microcontroller

The NXP MC9S08QE32CFT is a highly integrated microcontroller designed for embedded applications that require a balance between performance and power efficiency. This device is part of the HCS08 family of 8-bit microcontrollers which are known for their robustness and versatility in various industrial and consumer applications.

At the heart of the MC9S08QE32CFT is a powerful HCS08 central processing unit (CPU), running at a maximum bus frequency of 50 MHz. This provides the computational power necessary for complex tasks while maintaining a low-power profile. The microcontroller comes with 32KB of on-chip flash memory and 2KB of RAM, offering ample space for program storage and efficient data management.

One of the key features of this microcontroller is its rich set of peripherals. It includes an 8-channel 10-bit Analog-to-Digital Converter (ADC), which enables the device to interface with analog sensors and transducers. The MC9S08QE32CFT also boasts multiple communication interfaces such as I2C, SPI, and SCI (Serial Communications Interface), enabling easy integration into a variety of systems and allowing for serial communication with other devices.

For enhanced control applications, the microcontroller is equipped with two 2-channel and one 6-channel Timer/PWM modules. These modules are essential for tasks that require precise timing and pulse width modulation, such as motor control and dimming applications.

The device operates within an industrial temperature range of -40°C to +85°C and comes in a compact 48-pin QFN package, making it suitable for space-constrained applications. The MC9S08QE32CFT also features a range of system protection features, including a low-voltage detection with reset or interrupt capability, ensuring reliable operation under varying voltage conditions.

Overall, the NXP MC9S08QE32CFT microcontroller is an excellent choice for designers looking for a low-power, feature-rich MCU for their next embedded system project. Its combination of performance, memory, and peripherals, along with NXP's reputation for quality and support, make it a versatile and dependable component in any product design.
