The NXP MC68302CEH16C is a multifunctional integrated processor that combines the versatility of a 32-bit microprocessor with the functionality of multiple communication controllers. Designed to serve a wide range of applications, this processor is particularly well-suited for embedded control systems and communication tasks that require high performance and reliability.

Key Features

• 32-Bit Processing Power: At its core, the MC68302CEH16C boasts a powerful 32-bit CPU, ensuring efficient handling of complex computations and providing a solid foundation for robust applications.
• Integrated Communications Controllers: This processor features three integrated Serial Communication Controllers (SCCs) that support a variety of serial protocols, making it ideal for networking and telecommunication interfaces.
• System Integration: With its System Integration Module (SIM), the MC68302CEH16C simplifies system design by incorporating functions such as chip select logic, interrupt control, and a periodic interrupt timer.
• Flexible Memory Interface: The processor supports a wide range of memory types, including DRAM, SRAM, and ROM, providing designers with the flexibility to choose the optimal memory configuration for their specific application.
• Enhanced I/O Capabilities: The MC68302CEH16C is equipped with a rich set of I/O ports, including parallel I/O and timer functions, which can be tailored to meet the needs of various peripheral devices.

Applications

The versatility of the NXP MC68302CEH16C makes it an excellent choice for a broad spectrum of applications, including but not limited to:

• Industrial control systems
• Networking equipment
• Communication hubs and routers
• Automotive control units
• Embedded systems

Technical Specifications

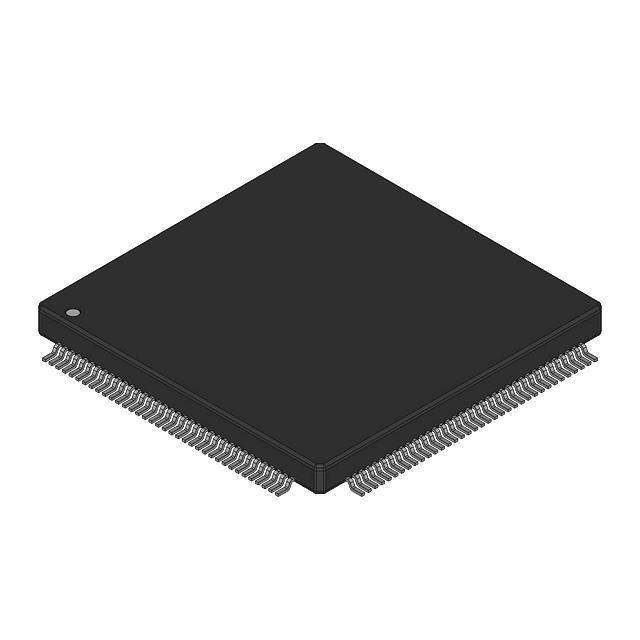

The MC68302CEH16C operates at a frequency of 16 MHz, providing a balance of power and energy efficiency. It is available in a 132-pin PQFP (Plastic Quad Flat Pack) package, ensuring a compact footprint for space-constrained applications. The processor's architecture is optimized for high-speed data transfers and effective multitasking, making it a reliable choice for systems that require concurrent processing of multiple data streams.
