Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr NXP USA Inc.
Package Tape & Reel
Product Status Obsolete
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface SPI
Voltage - Load 6V ~ 27V
Supply Voltage - Operating 4.5V ~ 5.5V
Rds On (Typ) 2mOhm
Features Slew Rate Controlled, Watchdog Timer
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)

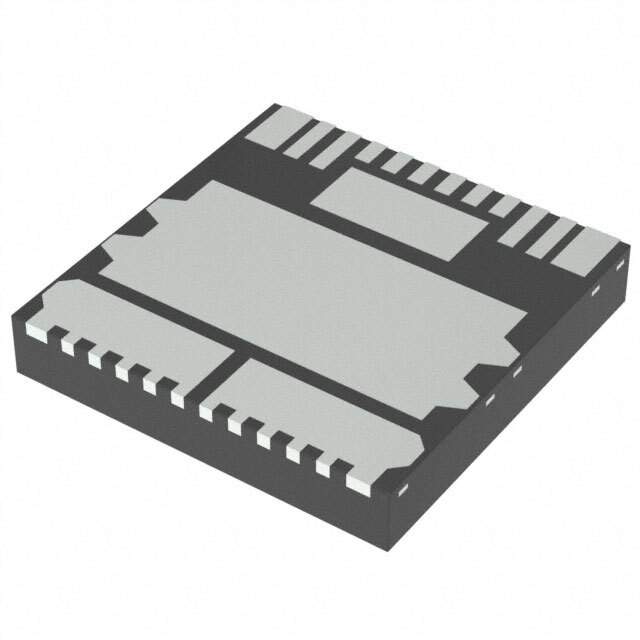

Supplier Device Package 16-PQFN (12x12)
Package / Case 16-PowerQFN
Base Product Number MC339
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 568-15056-6,MC33982CHFKR2-ND,568-15056-1,568-15056-2,934070462528
Standard Package 1,200
Win Source Part Number 975567-MC33982CHFKR2
Ultra Librarian 3D Model Ultra Librarian MC33982CHFKR2 CAD Model

Description

Product Overview: NXP MC33982CHFKR2

The NXP MC33982CHFKR2 is a high-performance switch designed for automotive and industrial applications. This switch is part of NXP's extensive portfolio of system basis chips that offer a range of integrated functions for various electronic control units. The MC33982CHFKR2 is specifically engineered to manage and control DC motors, solenoids, incandescent lamps, and resistive loads, making it a versatile component for a variety of circuit designs.

Key Features

  • High Current Handling: With the capability to handle high current loads, the MC33982CHFKR2 is suitable for driving a wide array of actuators and high-power devices.
  • Multiple Protection Mechanisms: This switch is equipped with several protection features such as overcurrent, overtemperature, and undervoltage shutdown, ensuring reliable operation and safeguarding the system against potential damage.
  • Low Standby Current: It is designed for energy efficiency with a low standby current, which is essential for battery-powered applications and helps to reduce overall power consumption.
  • Diagnostic Functions: The device includes diagnostic capabilities that provide feedback on the status of the load and the switch itself, facilitating maintenance and troubleshooting.
  • Configurable Output: The output of the MC33982CHFKR2 can be configured to suit the specific requirements of the application, offering flexibility in design.

Applications

The MC33982CHFKR2 is suitable for a broad range of applications due to its robustness and flexibility. It is commonly used in:

  • Automotive systems such as power seats, power windows, and HVAC controls
  • Industrial automation for controlling motors, actuators, and other high-power devices
  • Robotic systems where precise control of motors and actuators is required

Quality and Reliability

NXP is known for its commitment to quality, and the MC33982CHFKR2 is no exception. It is designed to meet the stringent standards of the automotive industry, ensuring high reliability and performance under harsh conditions. Its robust construction ensures that it can withstand the rigors of industrial environments, providing a reliable solution for critical applications.

With its combination of performance, protection features, and diagnostic capabilities, the NXP MC33982CHFKR2 is a top choice for designers looking to incorporate a reliable switch into their high-power systems.
