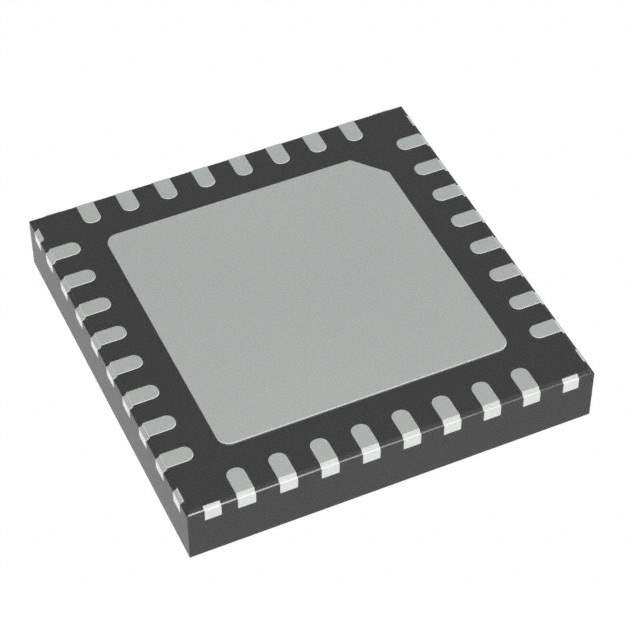

The MC33978AESR2 by NXP Semiconductors is a sophisticated Multiple Switch Detection Interface (MSDI) designed to detect the closing and opening of up to 22 switch contacts. This device is particularly suitable for automotive applications where a large number of switches need to be monitored under the hood or inside the cabin, such as in body control modules, lighting controls, and panel switches.

Key Features:

• Switch Detection: Capable of monitoring up to 22 switch contacts with a wetting current source for each switch input.
• High-Voltage Capability: Designed to withstand harsh automotive environments, it can handle significant voltage variations.
• Multiple Diagnostic Functions: Incorporates a wide range of diagnostics, including switch contact wetting current open-wire detection, and short-circuit detection.
• Flexible Interface: Offers a Serial Peripheral Interface (SPI) for communication with microcontrollers, allowing for easy integration into automotive systems.
• Low Standby Current: Optimized for low power consumption, making it ideal for battery-powered applications.

Applications:

The MC33978AESR2 is particularly adept at handling the rigorous demands of automotive applications, including:

• Body Control Modules
• Interior Switch Panels
• Lighting Control Systems
• Door and Window Control Modules

Technical Specifications:

• Package: SOIC-32
• Operating Temperature Range: -40°C to +125°C
• Supply Voltage Range: 5.5V to 27V
• Wetting Current: Programmable for each switch input

With its robust design and comprehensive feature set, the MC33978AESR2 is an excellent choice for designers looking for a reliable switch detection solution that can cope with the complex electrical environments found in modern vehicles.
