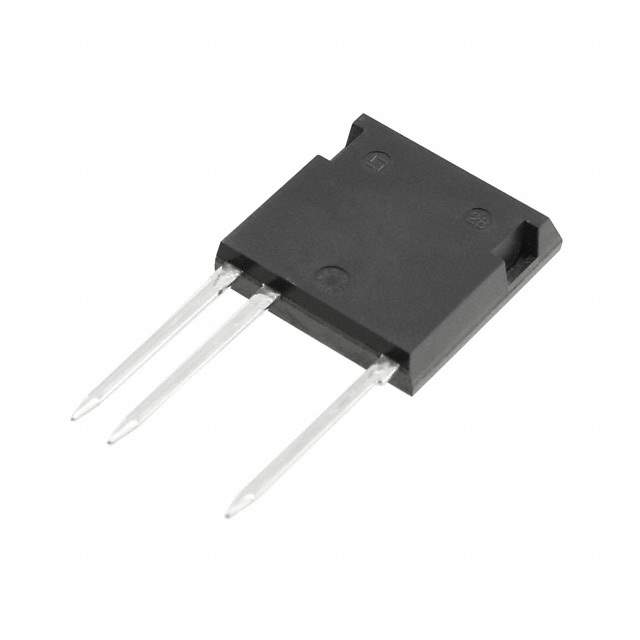

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr IXYS
Series BIMOSFET™
Package Tube
Voltage - Collector Emitter Breakdown (Max) 3000 V
Current - Collector (Ic) (Max) 40 A
Current - Collector Pulsed (Icm) 250 A
Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 32A
Power - Max 160 W
Input Type Standard
Gate Charge 142 nC
Reverse Recovery Time (trr) 1.5 µs
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case i4-Pac™-5 (3 Leads)
Supplier Device Package ISOPLUS i4-PAC™
Base Product Number IXBF32
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
California Prop 65 Warning Information
Win Source Part Number 1349549-IXBF32N300
Ultra Librarian 3D Model Ultra Librarian IXBF32N300 CAD Model

Description

The IXBF32N300 is a single IGBT transistor from the BIMOSFET™ series by IXYS.

  • Package: Tube
  • Standard Package: 25
  • Power - Max: 160 W
  • Reverse Recovery Time (trr): 1.5 μs
  • IGBT Type: Not Specified
  • Voltage - Collector Emitter Breakdown (Max): 3000 V
  • Current - Collector Pulsed (Icm): 250 A
  • Gate Charge: 142 nC
  • Test Condition: Not Specified
  • Mounting Type: Through Hole
  • Package / Case: i4-Pac™-5 (3 Leads)
  • Supplier Device Package: ISOPLUS i4-PAC™
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • For Use With/Related Products: Discrete Semiconductor Products, Transistors, IGBTs
