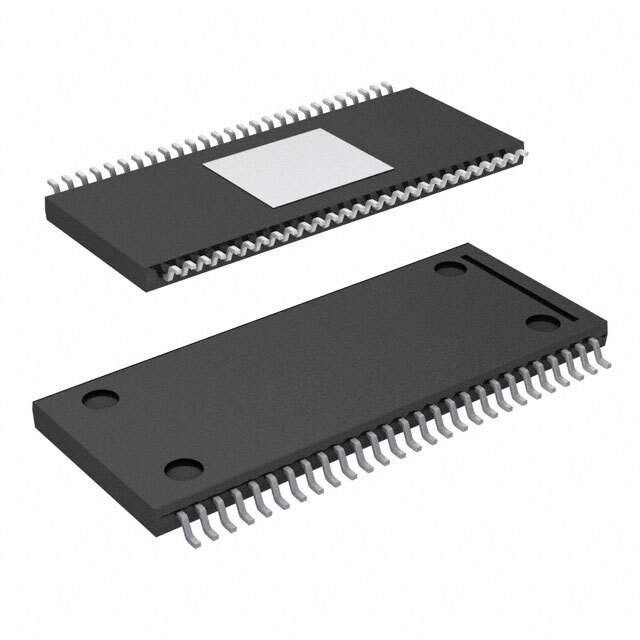

MC33937APEK

Part No MC33937APEK
Manufacturer NXP / Nexperia
Catalog PMIC - Motor Drivers, Controllers
Description Three Phase Field Effect Transistor Pre-driver | IC MOTOR DRIVER 6V-58V 54SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube
Motor Type - AC, DC Brushless DC (BLDC)
Function Controller - Commutation, Direction Management
Output Configuration Pre-Driver - Half Bridge (3)
Interface SPI
Technology NMOS
Applications Automotive
Supply Voltage (V) 6V ~ 58V
Temperature Range - Operating -40°C ~ 135°C
Mounting Style SMD
Manufacturer Package 54-SSOP Exposed Pad
Supplier Device Package 54-SOIC-EP
Family Part Number MC33937
Manufacturer Pack Quantity 26
MSL Level 3 (168 Hours)
Win Source Part Number 1218520-MC33937APEK
Manufacturer Homepage www.freescale.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC33937APEK CAD Model

Description

Introducing the MC33937APEK Motor Driver from NXP

The MC33937APEK is a sophisticated motor driver designed and manufactured by NXP Semiconductors, a leader in the automotive and industrial markets. This high-performance product is specifically engineered for controlling three-phase brushless DC motors, making it an ideal choice for a wide range of applications including automotive powertrains, electric power steering, and other systems requiring precise motor control.

Key Features:

  • Advanced MOSFET Pre-Driver: The MC33937APEK is a pre-driver for Field Effect Transistors (FETs) in three-phase motor systems, providing the necessary signals to control power MOSFETs efficiently.
  • High Voltage Capability: It operates at voltages up to 28V, catering to a broad spectrum of power requirements and ensuring compatibility with various motor designs.
  • Integrated Safety Features: The device includes several protection features such as overcurrent, undervoltage, and overtemperature protection, enhancing the reliability and longevity of the motor system.
  • Configurable Dead Time: Dead time insertion is configurable, which helps to prevent simultaneous high-side and low-side MOSFET conduction, thereby reducing the risk of shoot-through.
  • Flexible Control: It supports both locked anti-phase and sign magnitude PWM control methods, providing flexibility in the motor control scheme.
  • Diagnostic Functions: The built-in diagnostics and status reporting capabilities ensure that any issues can be quickly identified and addressed, minimizing downtime.

Package and Quality:

The MC33937APEK comes in a 54-pin QFN package, offering a compact footprint for space-constrained applications. It is designed with a focus on quality and durability, adhering to the rigorous standards expected in the automotive industry. The package is lead-free and RoHS compliant, reflecting NXP's commitment to environmental sustainability.

Applications:

With its robust feature set, the MC33937APEK is suited for a variety of applications beyond automotive, including industrial motor control, robotics, and aerospace systems where precision and reliability are paramount.

Overall, the MC33937APEK from NXP stands out as a high-quality, versatile motor driver solution that can meet the demands of complex and power-sensitive motor control applications.
