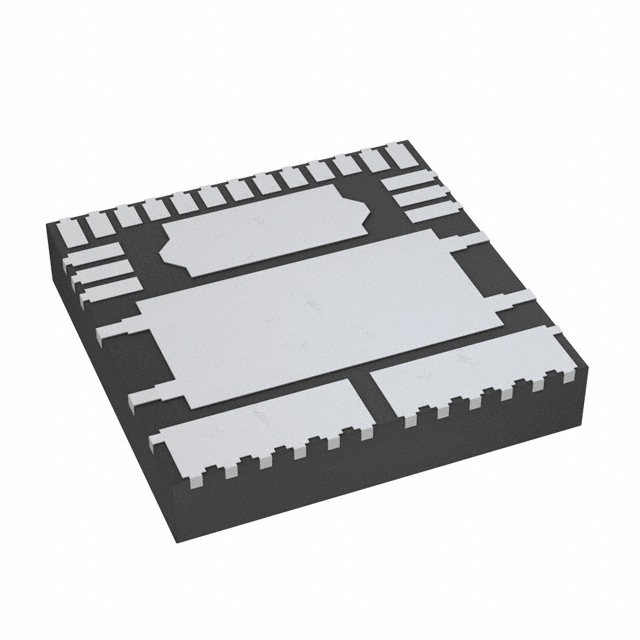

Product Overview: NXP MC20XS4200BFK

The NXP MC20XS4200BFK is a state-of-the-art, high-performance power switch designed for automotive and industrial applications. This robust device is part of NXP's extensive portfolio of system basis chips, offering a smart solution for driving and controlling various types of loads with precision and efficiency.

Key Features

• High Current Handling: With the capability to handle up to 20A of continuous current, the MC20XS4200BFK is well-suited for high-power applications, ensuring reliable operation even under demanding conditions.
• Multiple Switching Channels: The device features dual high-side switch outputs, providing flexibility in controlling two independent loads or combining them for higher current applications.
• Advanced Protection: It comes equipped with extensive diagnostic and protective features, including overcurrent, overtemperature, and short-circuit protection, ensuring the safety and longevity of the system.
• Low Standby Current: The power switch is optimized for low standby current, making it an ideal choice for battery-powered systems where power conservation is crucial.
• Wide Voltage Range: Operating over a broad voltage range, the MC20XS4200BFK accommodates various supply voltages, enhancing its versatility across different applications.

Applications

The MC20XS4200BFK is designed to meet the rigorous demands of automotive environments, making it perfect for controlling resistive, inductive, and capacitive loads such as motors, solenoids, and lamps. Its robustness and reliability also make it suitable for industrial applications where high-current switching is required.

Quality and Reliability

NXP is renowned for its commitment to quality, and the MC20XS4200BFK is no exception. It is manufactured to the highest standards to ensure consistent performance and reliability. The device is AEC-Q100 qualified, which is a stringent automotive qualification standard, indicating its suitability for automotive-grade applications.

Easy Integration

With a compact form factor and a simple interface, the MC20XS4200BFK can be easily integrated into existing designs, minimizing development time and speeding up the time-to-market for new products.
