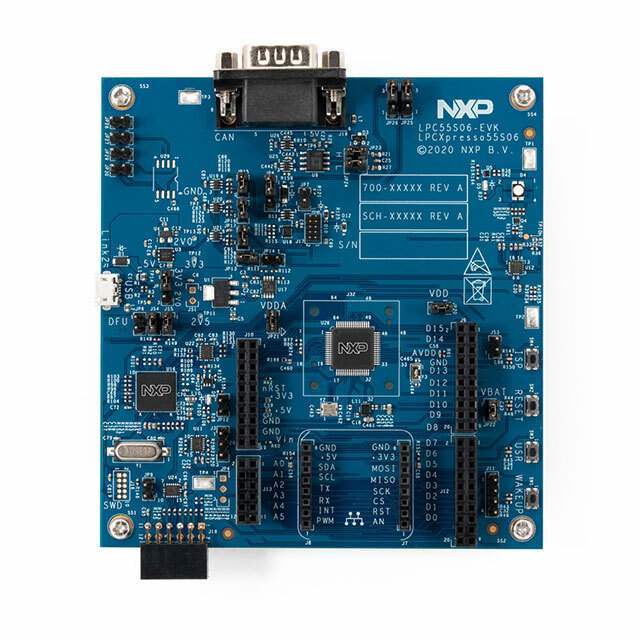

The LPC55S06-EVK from NXP Semiconductors is a versatile evaluation kit designed for the LPC55S06 microcontroller, which is part of the power-efficient LPC5500 series of Arm® Cortex®-M33 based microcontrollers. This evaluation kit is an excellent starting point for developers looking to explore the advanced features of the LPC55S06 MCU, which is engineered for embedded applications requiring a blend of performance, security, and low power consumption.

Key Features

• High-Efficiency Microcontroller: At the heart of the LPC55S06-EVK is the LPC55S06 MCU, featuring a dual-core Arm Cortex-M33 processor, which operates at frequencies of up to 150 MHz.
• Advanced Security: The kit supports state-of-the-art security features, such as secure boot, hardware-accelerated cryptographic engine, PUF (Physically Unclonable Function), and secure debug, to protect your designs against threats.
• Rich Set of Peripherals: The evaluation board includes a variety of on-board peripherals and connectors, including USB, CAN, FlexComm interfaces, and more, enabling a wide range of application development opportunities.
• Flexible Power Options: The LPC55S06-EVK can be powered through USB, an external power supply, or batteries, making it suitable for both desktop and portable applications.
• Integrated Debug Probe: With the on-board NXP LPC-Link2 debug probe, developers can program and debug the microcontroller without the need for additional hardware.
• Expansion Options: The evaluation kit offers expansion options through Arduino UNO and PMod-compatible connectors, allowing for easy addition of sensors, actuators, and other modules.

Development Support

The LPC55S06-EVK is supported by NXP’s comprehensive suite of development tools and software, including the MCUXpresso IDE and SDK, which provide an extensive set of drivers, middleware, and examples to streamline the development process. With its robust feature set and strong ecosystem, the LPC55S06-EVK is an ideal platform for developing a wide range of applications, from IoT and industrial control to general embedded systems.
