NXP LPC2388FBD144 Microcontroller

The NXP LPC2388FBD144 is a high-performance microcontroller that is part of the LPC2300 family, designed for embedded applications requiring a blend of low power consumption, advanced features, and high-speed processing. This microcontroller is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, which runs at up to 72 MHz.

With 512 KB of on-chip flash memory and 58 KB of SRAM, the LPC2388FBD144 is well-suited for complex applications and can support a wide range of computing tasks. Additionally, it features a vast array of peripherals including multiple serial interfaces such as UARTs, I2C-bus, SPI, SSP, CAN, and USB 2.0 Full Speed device/controller with on-chip PHY, which makes it ideal for communication-intensive applications.

The device supports a Vectored Interrupt Controller (VIC) for prioritized interrupts, a 10-bit ADC with multiple channels and a 10-bit DAC, providing ample support for interfacing with analog sensors and devices. Its General Purpose Timer/Counter, PWM unit, and Real-Time Clock with optional battery backup further enhance its capabilities for various time-sensitive and control-oriented tasks.

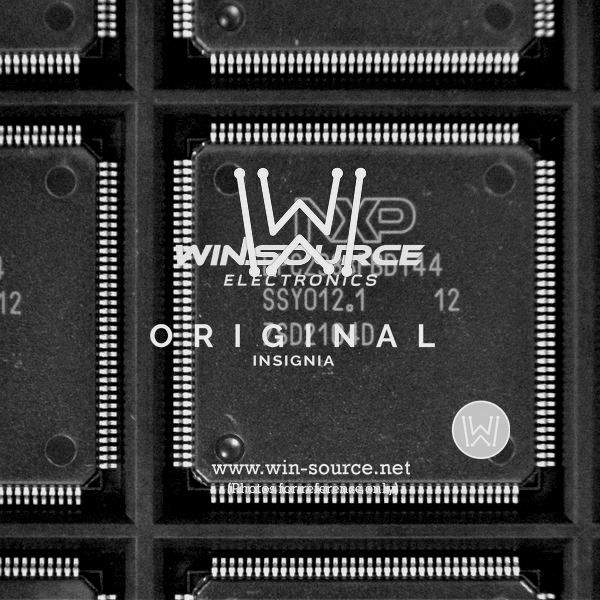

The LPC2388FBD144 microcontroller comes in a space-saving 144-pin LQFP package, which is especially beneficial for applications with space constraints. Its power management modes, including Idle and Power-down modes, help reduce power consumption, making it an efficient choice for battery-powered devices.

NXP's LPC2388FBD144 is equipped with a Memory Accelerator Module (MAM) that accelerates the execution of code from flash memory, and In-System Programming (ISP) and In-Application Programming (IAP) capabilities allow for firmware updates in the field with ease. This robust feature set makes the LPC2388FBD144 a flexible and reliable choice for industrial control, medical systems, e-commerce, alarm systems, and many other embedded applications.
