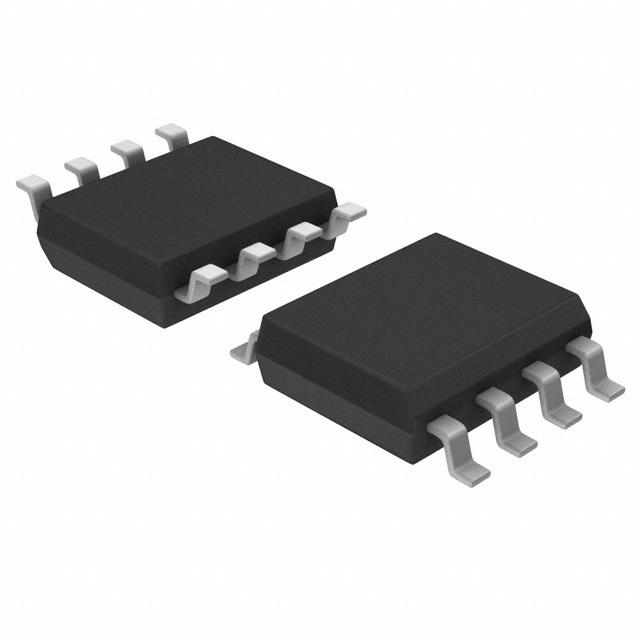

The ICM7555ID/01,118 is a 555-type timer integrated circuit (IC) from NXP Semiconductors. It is a general-purpose timer that can be used to create a variety of timing circuits, such as monostable multivibrators, astable multivibrators, and pulse-width modulators. It is a very popular timer IC and is used in a wide range of applications, including:

• Industrial control systems
• Consumer electronics
• Automotive electronics
• Medical devices
• Aerospace and defense applications

The ICM7555ID/01,118 is a very versatile IC and can be used to create a wide range of timing circuits. It is also very easy to use and can be configured with just a few external components.

Features

The ICM7555ID/01,118 has the following features:

• Wide operating voltage range: 3V to 16V
• Low power consumption: 180µA
• Wide timing range: 1µs to 18 hours
• Three operating modes: monostable, astable, and Schmitt trigger
• Two trigger inputs: trigger and reset
• One output pin: output

Applications

The ICM7555ID/01,118 can be used in a wide range of applications, including:

• Pulse generators
• Delay timers
• One-shot timers
• Frequency dividers
• Schmitt triggers
• Voltage-controlled oscillators
• PWM controllers

Example circuits

Here are a few example circuits that use the ICM7555ID/01,118:

Monostable multivibrator

A monostable multivibrator is a circuit that produces a single pulse of a predetermined length when it is triggered. The following circuit shows a monostable multivibrator using the ICM7555ID/01,118:

Monostable multivibrator circuit

The output pulse width of the circuit is determined by the values of the capacitor (C1) and resistor (R1). The pulse width can be calculated using the following formula:

Pulse width = 1.1 * R1 * C1

Astable multivibrator

An astable multivibrator is a circuit that produces a continuous train of pulses. The following circuit shows an astable multivibrator using the ICM7555ID/01,118:

Astable multivibrator circuit

The frequency and duty cycle of the output pulses are determined by the values of the resistors (R1 and R2) and capacitor (C1). The frequency can be calculated using the following formula:

Frequency = 1.1 / (R1 + 2 * R2) * C1

The duty cycle can be calculated using the following formula:

Duty cycle = R1 / (R1 + 2 * R2)

PWM controller

A PWM controller is a circuit that generates a pulse-width modulated (PWM) signal. A PWM signal is a digital signal that consists of a series of pulses of varying width. The width of each pulse determines the amount of power that is delivered to the load.

The following circuit shows a simple PWM controller using the ICM7555ID/01,118:

Opens in a new windowwww.allaboutcircuits.com

PWM controller circuit

The frequency and duty cycle of the PWM signal are determined by the values of the resistors (R1 and R2) and capacitor (C1). The frequency can be calculated using the same formula as for the astable multivibrator. The duty cycle can be adjusted by varying the value of the potentiometer (P1).

Conclusion

The ICM7555ID/01,118 is a very versatile and easy-to-use timer IC. It can be used to create a wide range of timing circuits, from simple monostable multivibrators to complex PWM controllers.
