The BGM1032N7 is a silicon germanium (SiGe) low noise amplifier (LNA) designed for various RF applications. Manufactured by Infineon Technologies, this LNA is optimized for use in GPS, GLONASS, and other satellite navigation systems, as well as in wireless communication devices operating in the 1559 MHz to 1606 MHz frequency range. It provides excellent gain and noise figure performance, enhancing the sensitivity and range of receiver systems.

Applications:

• GPS Receivers
• GLONASS Receivers
• Satellite Navigation Systems
• Wireless Communication Devices
• Navigation Devices

Features:

• High Gain: Provides substantial signal amplification, improving receiver sensitivity.
• Low Noise Figure: Minimizes noise contribution, ensuring high signal quality.
• Integrated Matching Network: Simplifies the design process and reduces external component count.
• Small Package: Compact size allows for use in space-constrained applications.
• Supply Voltage: Typically operates at a low supply voltage (e.g., 1.5V to 3.6V), making it suitable for battery-powered devices.
• ESD Protection: Integrated ESD protection circuitry enhances device robustness.

Benefits:

• Improved Receiver Sensitivity: Enhances the ability to detect weak signals, extending the operating range of the device.
• Increased System Performance: Contributes to better overall system performance by minimizing signal degradation.
• Simplified Design: Integrated matching network and compact size streamline the design process, reducing time-to-market.
• Reduced Component Count: Integration of key components minimizes the need for external parts, lowering costs and simplifying assembly.
• Enhanced Reliability: ESD protection ensures robust performance in harsh environments.

Additional Details:

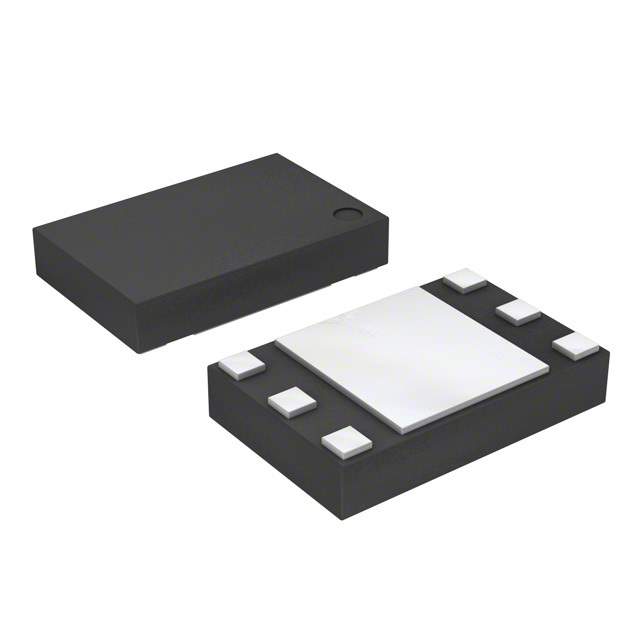

The BGM1032N7 is typically supplied in a small SMD package, such as TSNP-7-1. It is designed to operate over a wide temperature range, making it suitable for various environmental conditions. The device features a shutdown mode, which can be used to conserve power when the LNA is not needed. Its low current consumption and high gain make it an ideal choice for battery-powered applications requiring high performance and efficiency.
