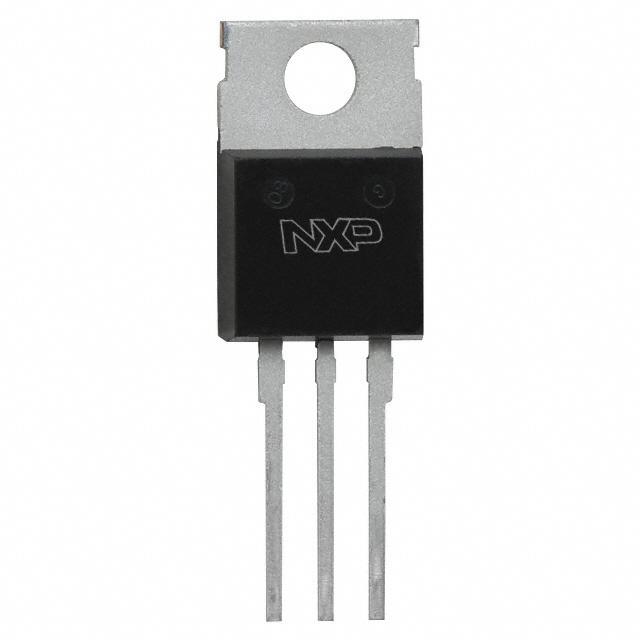

Products specifications

Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Manufacturer NXP
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 1.15V @ 20A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 30μA @ 150V
Mounting Style Through Hole
Package TO-220-3
Manufacturer Device Package TO-220AB
Win Source Part Number 201717-BYV32E-150
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BYV32E-150
Introduction Date August 05, 2015
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian BYV32E-150 CAD Model

Description

The BYV32E-150, part of NXP Semiconductors' robust diode portfolio, is a high-efficiency, dual ultrafast rectifier designed for applications that require efficient and reliable high-speed switching. This rectifier is engineered to handle a repetitive peak reverse voltage of 150 volts and is commonly used in power supply units, lighting systems, and inverters.

Key Features

  • Low Forward Voltage Drop: The device offers a low forward voltage drop which enhances power efficiency and results in lower power loss during operation.
  • High Surge Current Capability: With its ability to handle high surge currents, the BYV32E-150 is ideal for applications that experience short bursts of high current, providing reliability and stability.
  • Ultrafast Reverse Recovery Time: The rectifier's ultrafast recovery time ensures minimal switching losses, making it suitable for high-frequency operations.
  • Dual Diode Configuration: The component contains two diodes in a common cathode arrangement, packaged in a single SOT-93 package, which saves space on the PCB.
  • High Thermal Performance: Its SOT-93 package is designed for optimal thermal performance, ensuring the device operates within safe temperature ranges under high current conditions.

Applications

  • Switch Mode Power Supplies (SMPS)
  • Power Management Systems
  • High-frequency Inverters
  • Freewheeling Diodes in Converters
  • Energy Recovery Circuits

Product Specifications

Parameter Value Package SOT-93 Repetitive Peak Reverse Voltage (V<sub>RRM) 150 V Average Forward Current (I<sub>F(AV)) 20 A Non-Repetitive Peak Forward Surge Current (I<sub>FSM) 200 A Reverse Recovery Time (t<sub>rr) 35 ns Operating Junction Temperature (T<sub>j) -65 to +175 °C

The BYV32E-150 is a testament to NXP's commitment to delivering high-performance components that meet the rigorous demands of modern electronic applications. Its combination of efficiency, reliability, and speed makes it a preferred choice for engineers and designers looking to optimize their power circuits.
