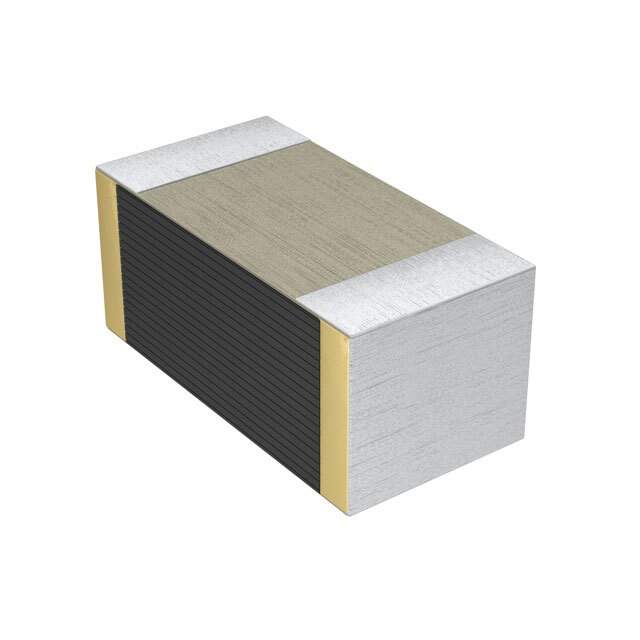

The ECHU1C221JX5 is a film capacitor manufactured by Panasonic. These capacitors are often used in circuits requiring high stability and reliability, such as those found in industrial and consumer electronics.

Applications

• Consumer electronics (TVs, audio equipment)
• Industrial equipment (power supplies, motor drives)
• Lighting ballasts
• Noise suppression circuits
• Timers and oscillators

Features

• High stability
• Low loss factor
• Excellent frequency characteristics
• Non-inductive construction
• RoHS compliant

Benefits

• Stable circuit performance over a wide temperature range
• Minimal energy dissipation, increasing efficiency
• Effective performance at high frequencies
• Reduced electromagnetic interference (EMI)
• Environmentally friendly due to RoHS compliance

Specifications

Consult the official Panasonic datasheet for precise specifications. Typical specifications for a film capacitor like the ECHU1C221JX5 include:

• Capacitance: 220pF (0.00022uF) (Estimate, confirm with datasheet)
• Voltage Rating: 16V (Estimate, confirm with datasheet)
• Tolerance: ±5% (Estimate, confirm with datasheet)
• Temperature Range: -40°C to +85°C (Estimate, confirm with datasheet)
• Dielectric Material: Metallized Polyester Film

Important: Always consult the official Panasonic datasheet for the ECHU1C221JX5 to ensure accurate application and performance within your circuit. The estimated values are for illustrative purposes only.
