Products specifications

Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Manufacturer NXP
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 16A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 16A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 30μA @ 200V
Mounting Style Through Hole

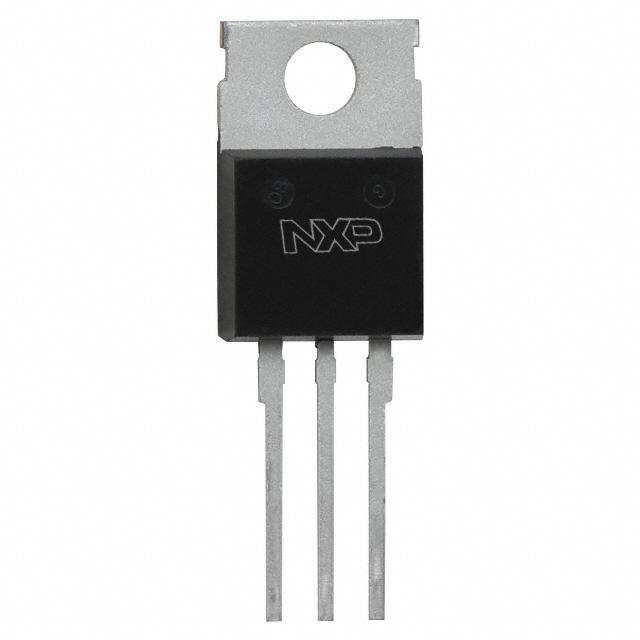

Package TO-220-3
Manufacturer Device Package TO-220AB
Win Source Part Number 201692-BYQ30E-200
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BYQ30E-200 CAD Model

Description

Product Overview: BYQ30E-200 from NXP

The BYQ30E-200 is a robust rectifier diode designed and manufactured by NXP Semiconductors, a leader in the semiconductor industry. This high-efficiency, ultra-fast diode is specifically engineered to meet the demands of power regulation and conversion applications. It is a preferred choice for engineers looking to enhance the performance of their power supply designs.

Key Features

  • Voltage Rating: The BYQ30E-200 is designed to handle continuous reverse voltages up to 200 volts, making it suitable for a wide range of applications in the electronics industry.
  • Current Capacity: With an average forward current of 30 amperes, this diode can support high current operations, ensuring reliable performance in demanding situations.
  • Ultra-Fast Recovery Time: The device boasts an ultra-fast recovery time, which minimizes power losses and improves efficiency, especially in fast-switching power supply circuits.
  • High Thermal Performance: Encapsulated in a SOD-93 package, the BYQ30E-200 offers excellent thermal conductivity and heat dissipation, allowing for stable operation even under high temperature conditions.
  • Low Forward Voltage Drop: The low forward voltage drop feature of this diode ensures reduced power dissipation and enhances overall energy efficiency.

Applications

The BYQ30E-200 is ideal for use in a variety of applications where efficiency and reliability are paramount. Its fast switching capability and high voltage rating make it well-suited for:

  • Switch-mode power supplies (SMPS)
  • Power factor correction (PFC) circuits
  • Freewheeling diodes in converters and motor control circuits
  • Snubber diodes
  • Energy recovery circuits

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality components that meet the rigorous standards of the electronics industry. The BYQ30E-200 is manufactured with precision and is subject to stringent testing to ensure it meets NXP's reliability criteria. Customers can trust this diode to perform consistently over its intended lifespan, even in the most challenging environments.

Conclusion

The BYQ30E-200 from NXP Semiconductors is a versatile and reliable component that offers exceptional performance for power management tasks. Its combination of high current capacity, fast recovery time, and thermal efficiency makes it an excellent choice for designers looking to optimize their power circuitry.
