The BT136-800E is a high-quality Triac manufactured by NXP Semiconductors, designed to control AC power in a variety of applications. This semiconductor device is widely used in AC switching and phase control applications such as motor speed controllers, dimmers, and other small power control devices. It is capable of switching both parts of an AC waveform, which makes it an efficient solution for AC power control.

Key Features

• High Blocking Voltage: The BT136-800E is capable of withstanding voltages up to 800V, making it suitable for a wide range of mains voltages.
• Current Rating: With an on-state RMS current of 4A, this Triac can handle a significant amount of power, suitable for various electrical applications.
• Gate Trigger Voltage: A low gate trigger voltage (Vgt) ensures that the device can be easily controlled by microcontrollers and other low-power driving circuits.
• Gate Trigger Current: It has a sensitive gate which requires a low trigger current, making it compatible with circuits that have limited current sourcing capabilities.

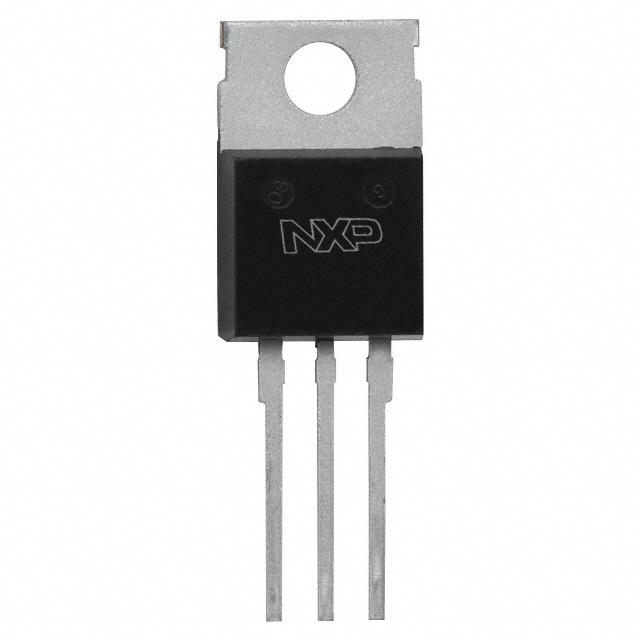

• Package: Packaged in a conventional TO-220AB package, the BT136-800E is easy to mount and provides good thermal conduction paths.

Applications

The versatility of the BT136-800E allows it to be used in a diverse array of applications. It is particularly suited for:

• Lighting control systems, including dimmers and switches
• Motor control circuits for speed and phase control
• Heating systems requiring precise temperature control
• Small power tools where electronic speed control is needed
• General purpose AC power switching where high surge capability is required

Reliability and Quality

NXP Semiconductors is known for its commitment to quality and reliability, and the BT136-800E is no exception. It is designed to meet stringent industry standards, ensuring a reliable performance in even the most demanding situations. For designers and engineers looking for a robust and versatile Triac for AC power control, the BT136-800E from NXP offers an excellent balance of performance and reliability.
