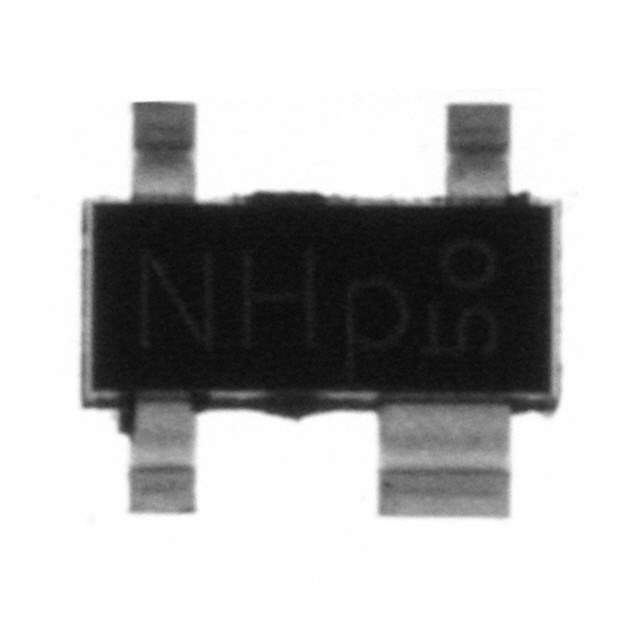

The NXP BF1109R is a cutting-edge silicon N-channel dual-gate MOSFET that offers a high level of performance for a wide range of applications. Designed to operate at VHF and UHF frequencies, this device is particularly suited for use in RF amplification and mixing applications. The BF1109R is known for its low noise figure and high gain, making it an excellent choice for sensitive RF front-end designs.

Key Features

• High Gain: The BF1109R provides a strong amplification factor, which is essential for weak signal amplification in RF circuits.
• Low Noise Figure: With its low noise characteristics, the BF1109R ensures clear signal amplification, minimizing the degradation of signal quality.
• Dual-Gate Design: The dual-gate configuration allows for better control and stability of the amplification process.
• High Transition Frequency: The device features a high transition frequency (fT), enabling it to operate effectively at VHF and UHF frequencies.
• Surface-Mount Package: The BF1109R comes in a small surface-mount package, which is ideal for space-constrained applications.

Applications

The versatility of the NXP BF1109R allows it to be used in a variety of RF applications. Some of the most common applications include:

• VHF/UHF amplifiers in telecommunication systems
• Mixers and oscillators in RF circuits
• High-frequency signal processing
• TV tuners and professional RF equipment

Technical Specifications

With its robust performance and versatility, the NXP BF1109R is a reliable choice for designers seeking to enhance their RF circuitry. Its advanced features ensure efficient operation in demanding environments, making it a valuable component in the field of wireless communication and signal processing.
