Products specifications

Product Status Active
Frequency 3.6GHz ~ 3.8GHz
Gain 30.5dB
RF Type 5G, LTE
Voltage - Supply 0V ~ 32V
Grade -
Mounting Type Surface Mount

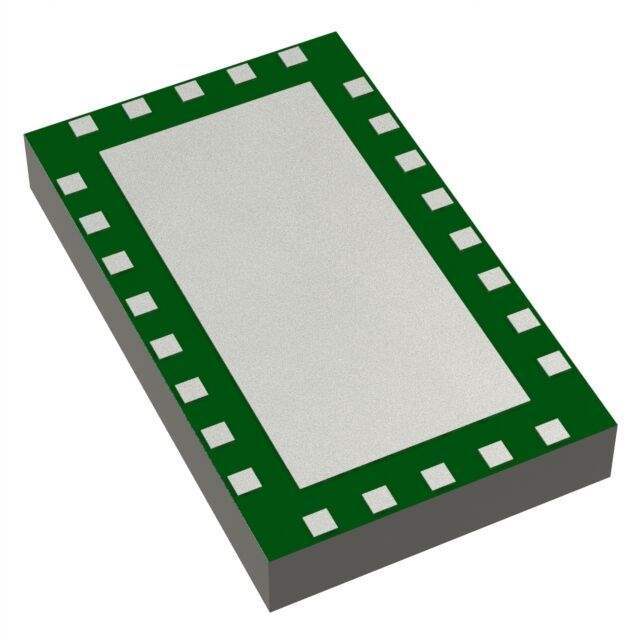

Package / Case 26-LQFN Exposed Pad
Supplier Device Package 26-HLQFN (10x6)
Ultra Librarian 3D Model Ultra Librarian AFSC5G37D37T2 CAD Model

Description

The AFSC5G37D37 is a fully integrated Doherty power amplifier module designed for wireless infrastructure applications that demand high performance in the smallest footprint. Ideal for applications in massive MIMO systems, outdoor small cells, and low power remote radio heads. The field--proven LDMOS power amplifiers are designed for TDD and FDD LTE systems.
